PRODUCT SHOW

MICRO DC MOTOR

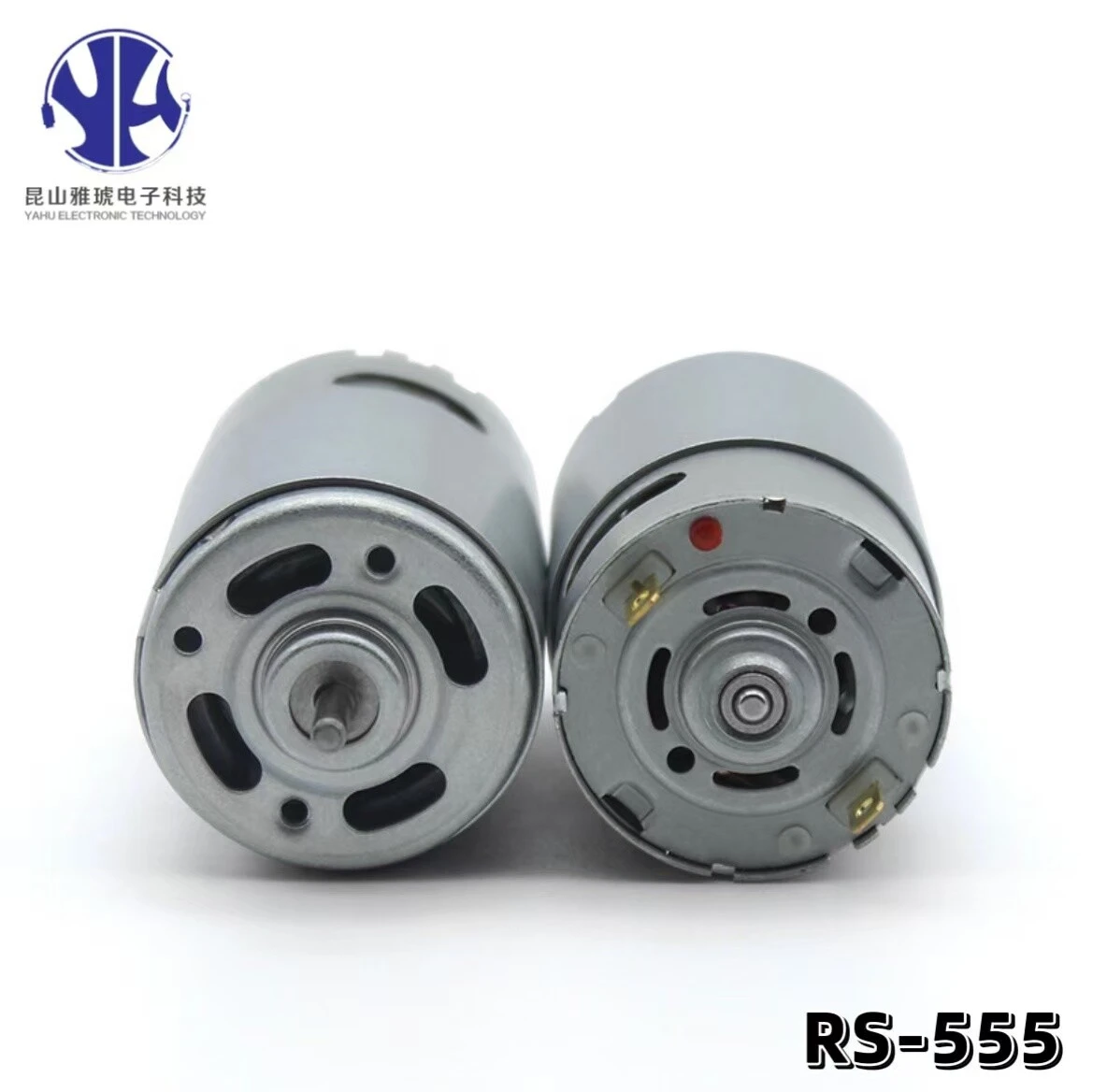

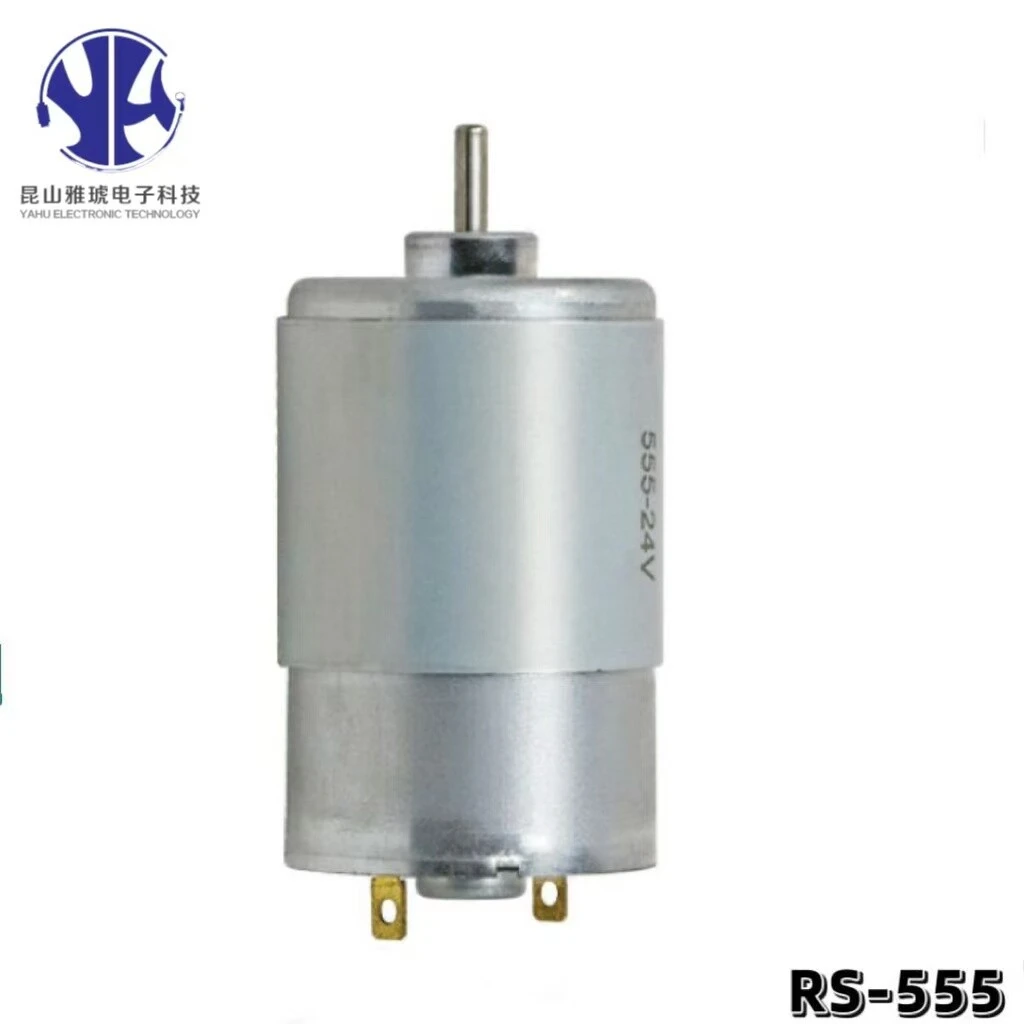

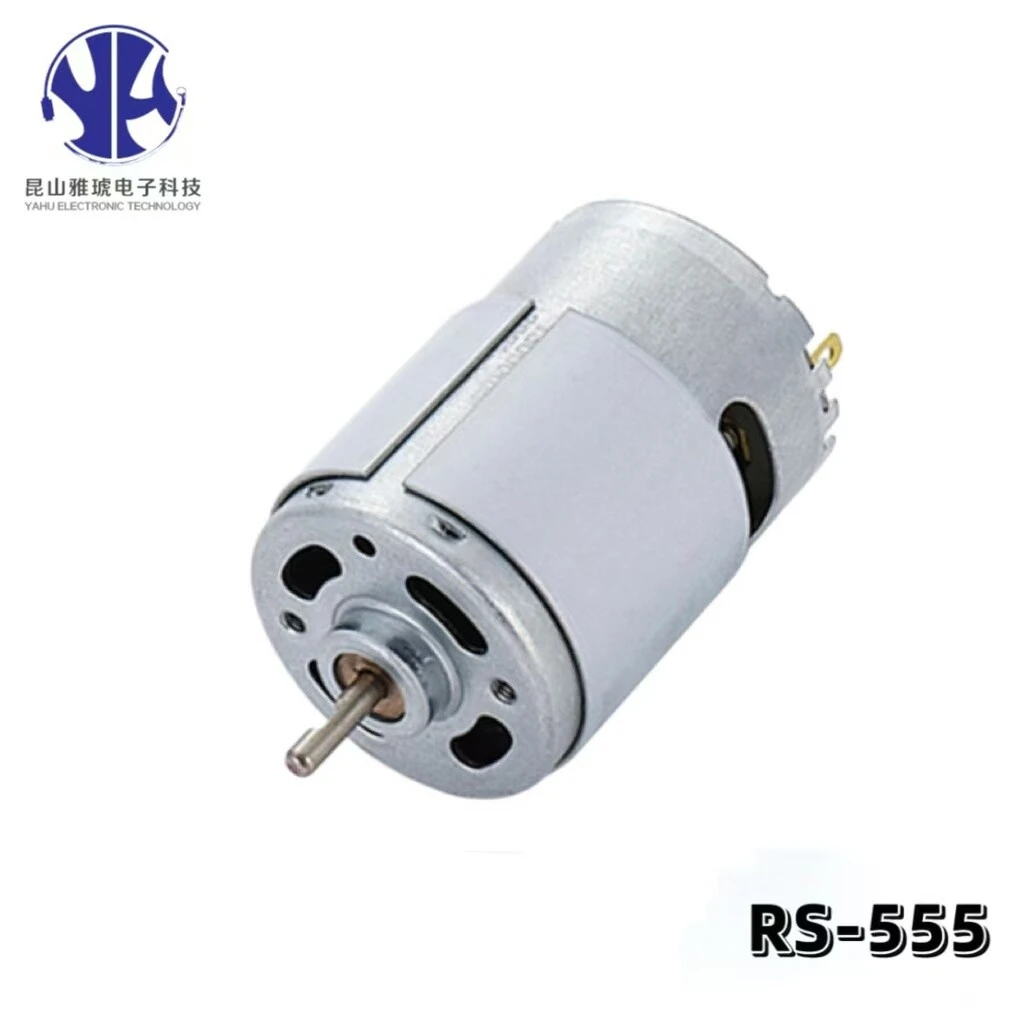

RS555 DC micro motor 12V-36V Brushed dc motor can customize 2500rpm -18000rpm

MOQ：Depending on material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

DC Micro Motor 555 12V Brush motor 3000rpm/4500rpm/6000rpm/7500rpm/10000RPM

Name: RS555 DC micro motor 12V-36V Brushed dc motor can customize 2500rpm -18000rpm
SKU: 0

Term details of cooperation

P/N

Application

Capacity

Made in

Brand

Certi

MOQ

Packing

Lead time

RS555

80,000-100,000pcs

China

ROHS

REACH

10PCS

pallet

customize for you

7-12 days

Specification for Doubel ball Bearing RS555 Motor

Product Model	RS-555 Brushed DC Motor
Product size	diameter 35.9*57 excluding magnetic guard)
Conventional output shaft size	3.175*9
Operating voltage	DC 36 V and below Body
material	galvanized high-strength casing, double ball bearings
Material of rotor	pure copper coil, high- performance silicon steel sheet
No load speed	supports customization
Customization range	2500-18000rpm
Customized minimum order quantity	1000units
Packaging quantity	100units/box
Packaging material	foam inner box+carton packaging
Package size:	350260170
Single box weight:	22.8 KG

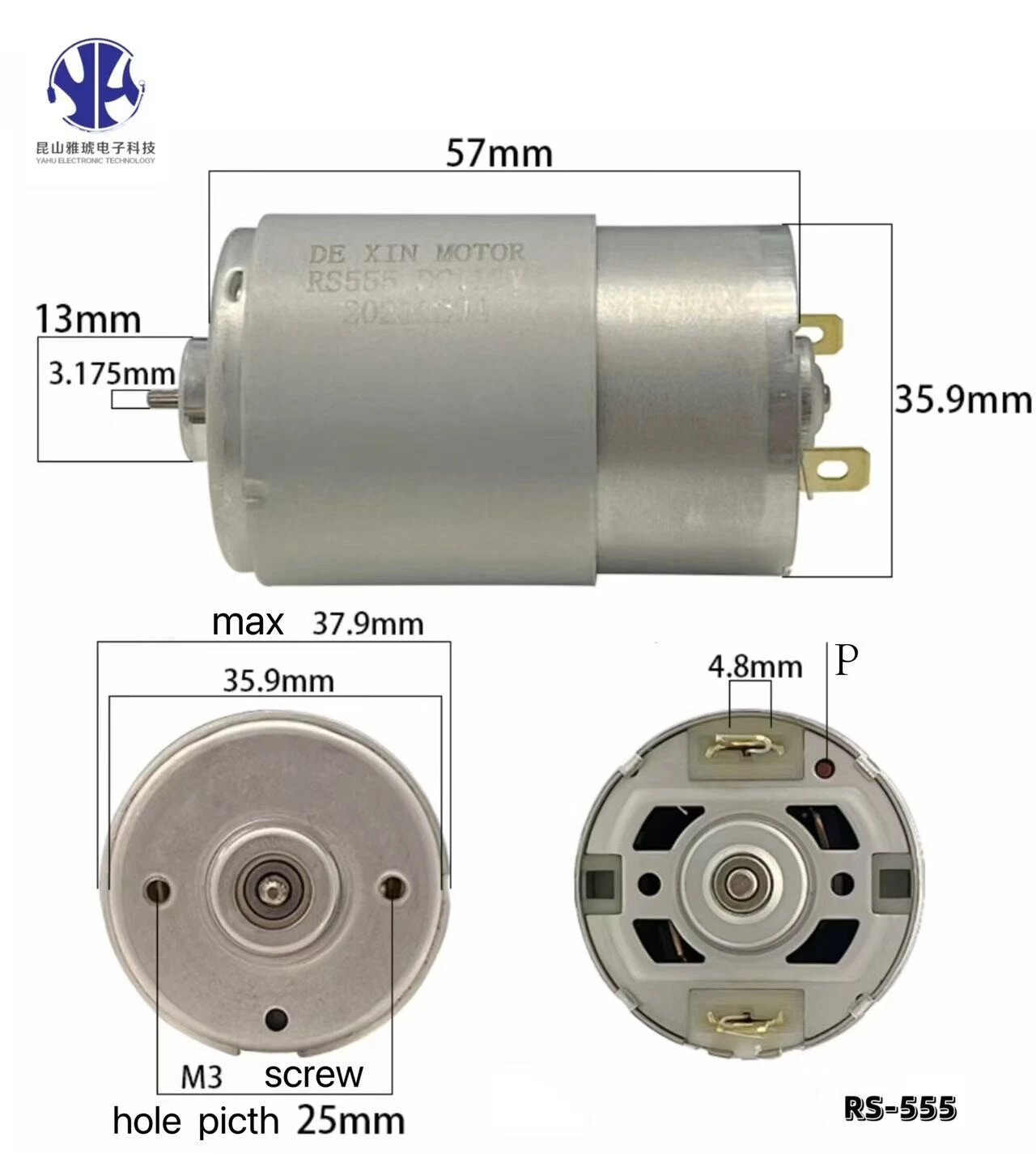

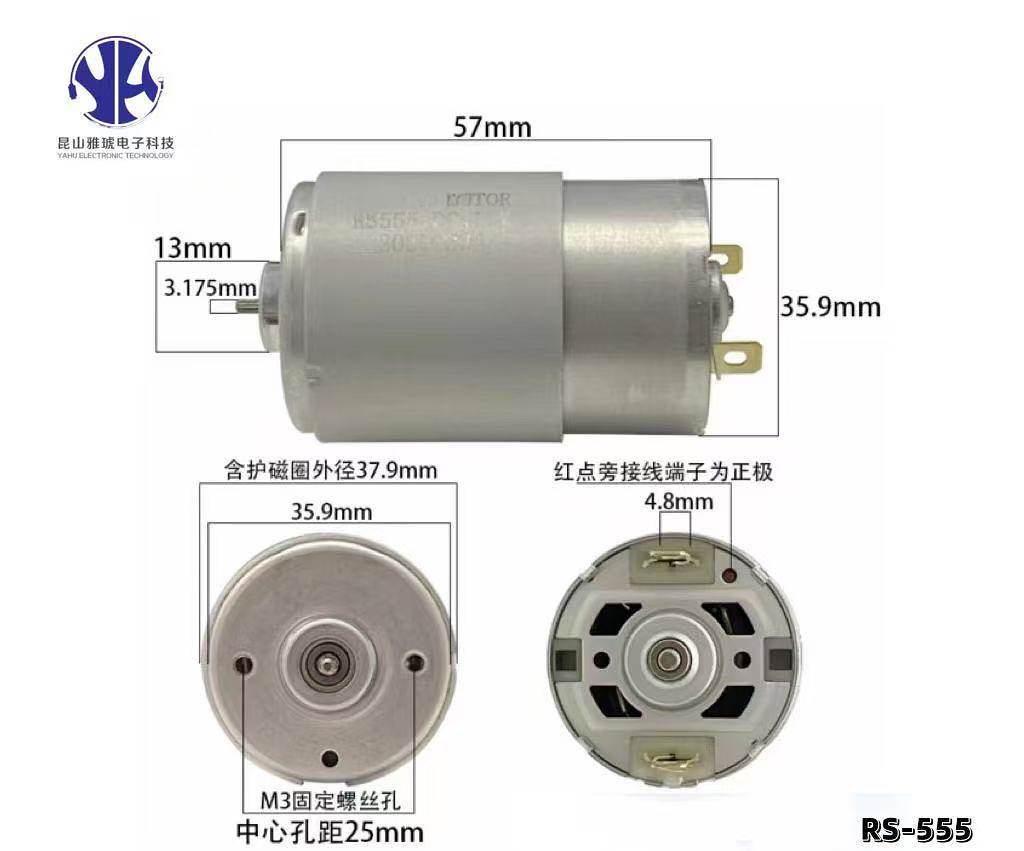

Drawing for Doubel ball Bearing RS555 Motor

555 dc motor with ball bearing ,can customize shaft ,voltage ,speed ,torque

Aplication

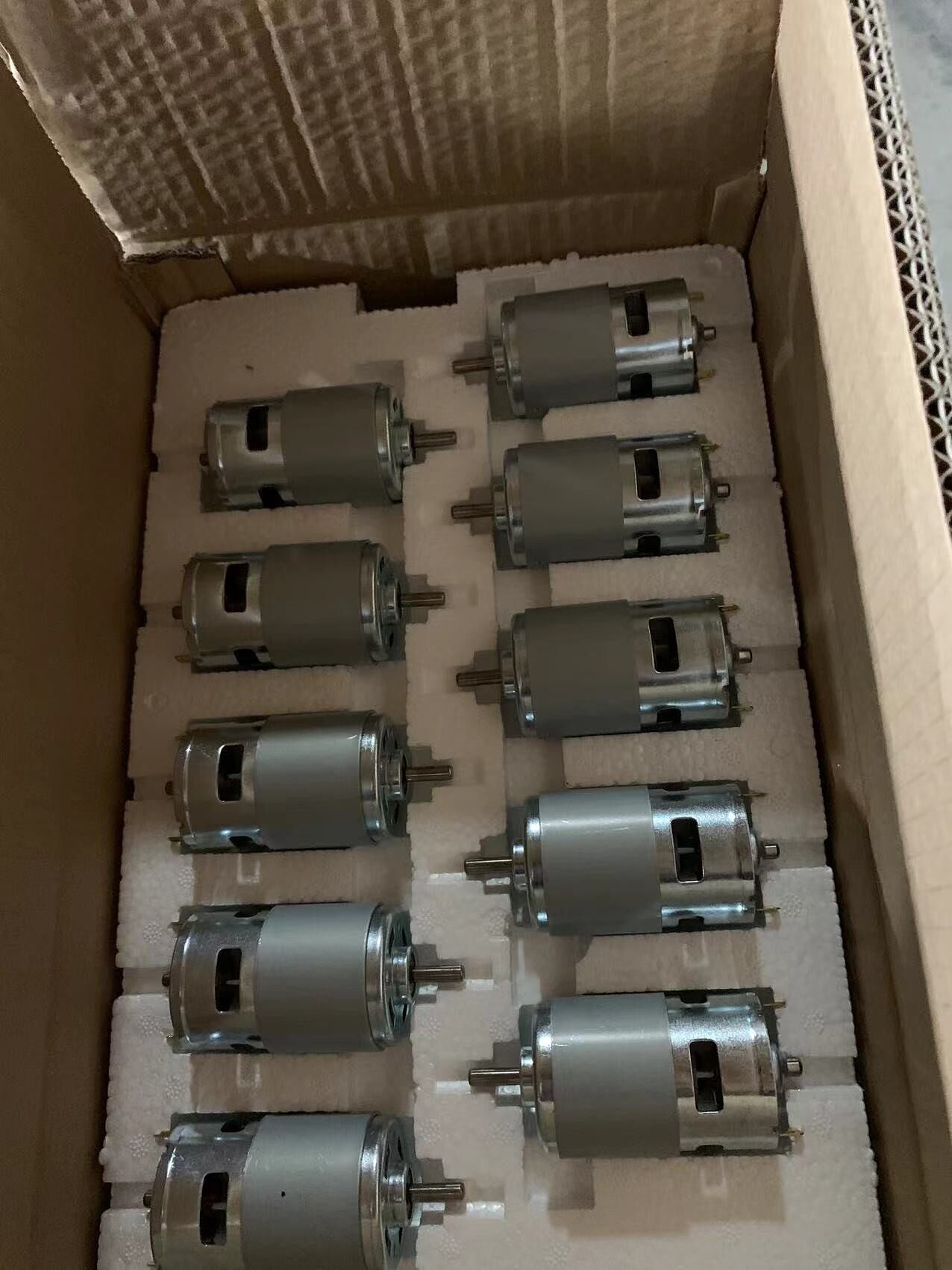

PACKING

package of 555 dc motor

Make process

Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
