Gear Dc Motor

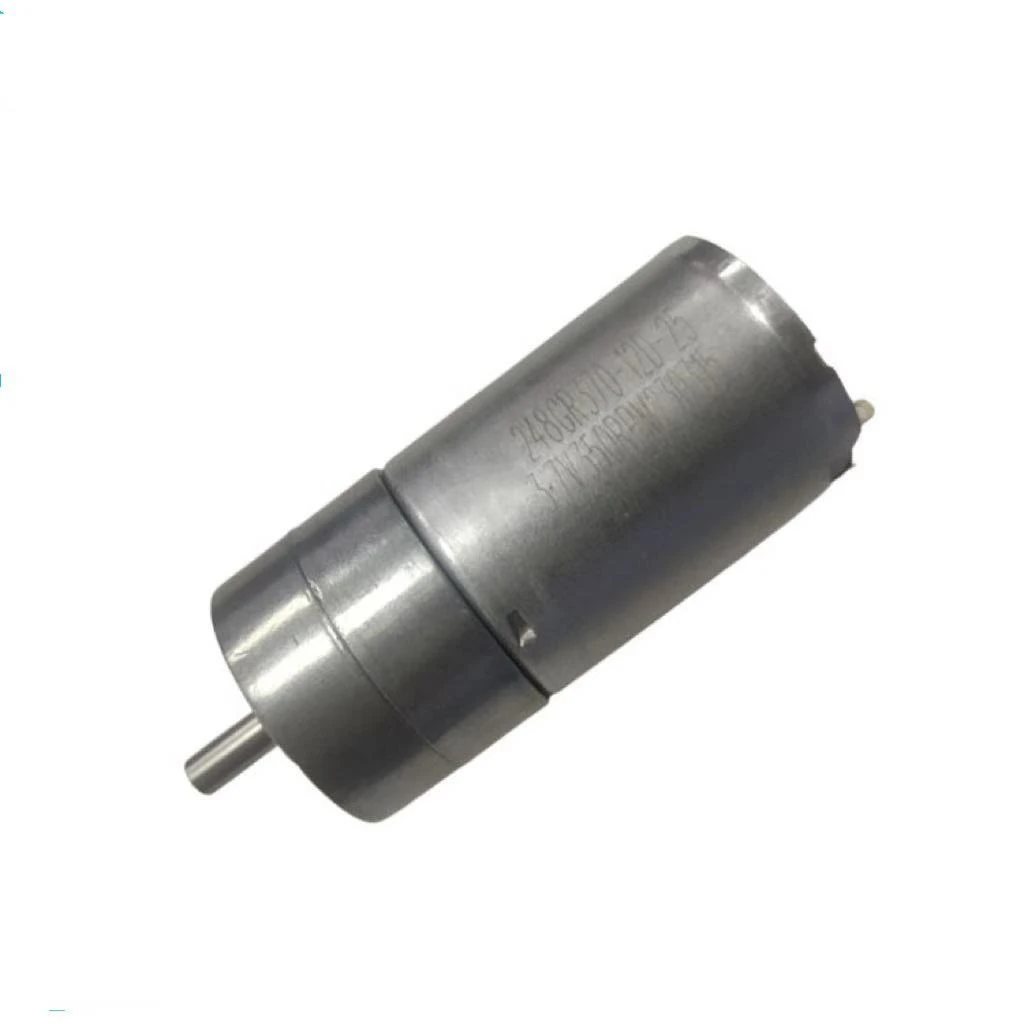

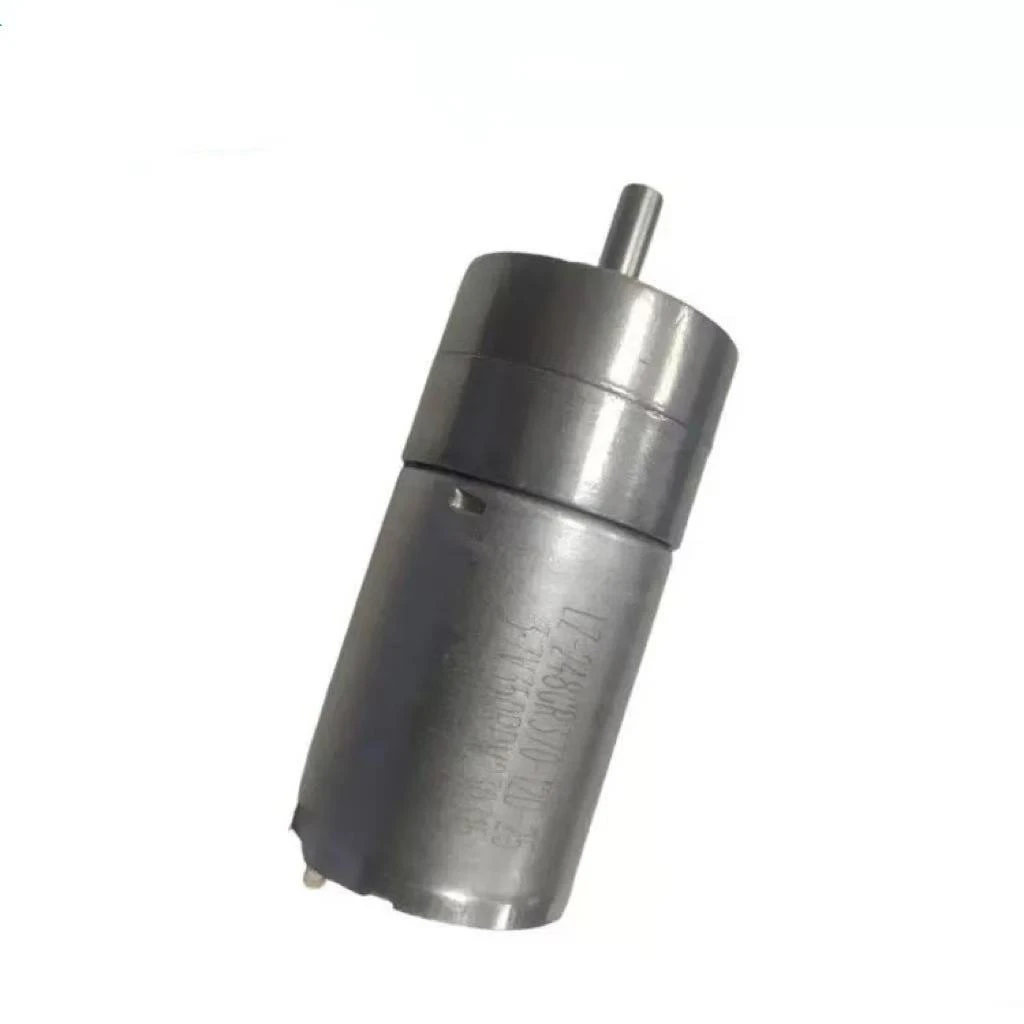

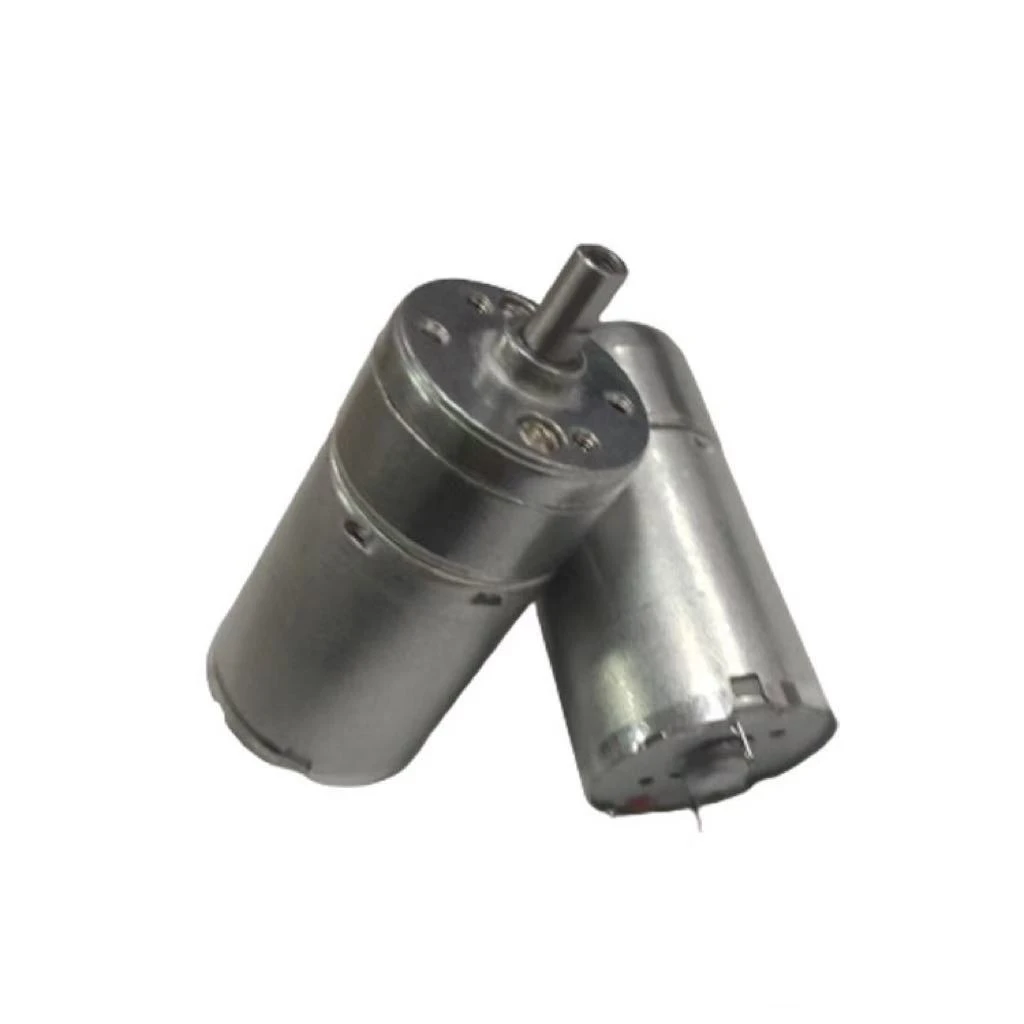

3.7V 248GR370 Gear dc motor 24V

MOQ：Depending on  material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Terms of cooperation

P/NApplicationCapacityMade inBrandCertMOQPackingLead time

248GR370

  • Juicer

  • vacuum cleaner

  • coffee machine



80,000-100,000PCS/daysChinaYH

CE

ROHS

REACH

10PCSpallet


7-12

days

Specification

Rated voltage (phase)3.7V(DC)
No load speed (RPM)
11000+/-10%
No load current(mA)≤180
Load speed (RPM)550+/-10%
Loa current (A)
≤700
Rated torque (Kgf.cm)10
Stall current(A)
≥8.7
Direction(CW/CCW)
CCW
Noise (dB)L=300MM
≤65
Driving motor Model
370
Reduction ratio1:20

 Drawings of 248GR370 Gear Dc MOTOR


Package

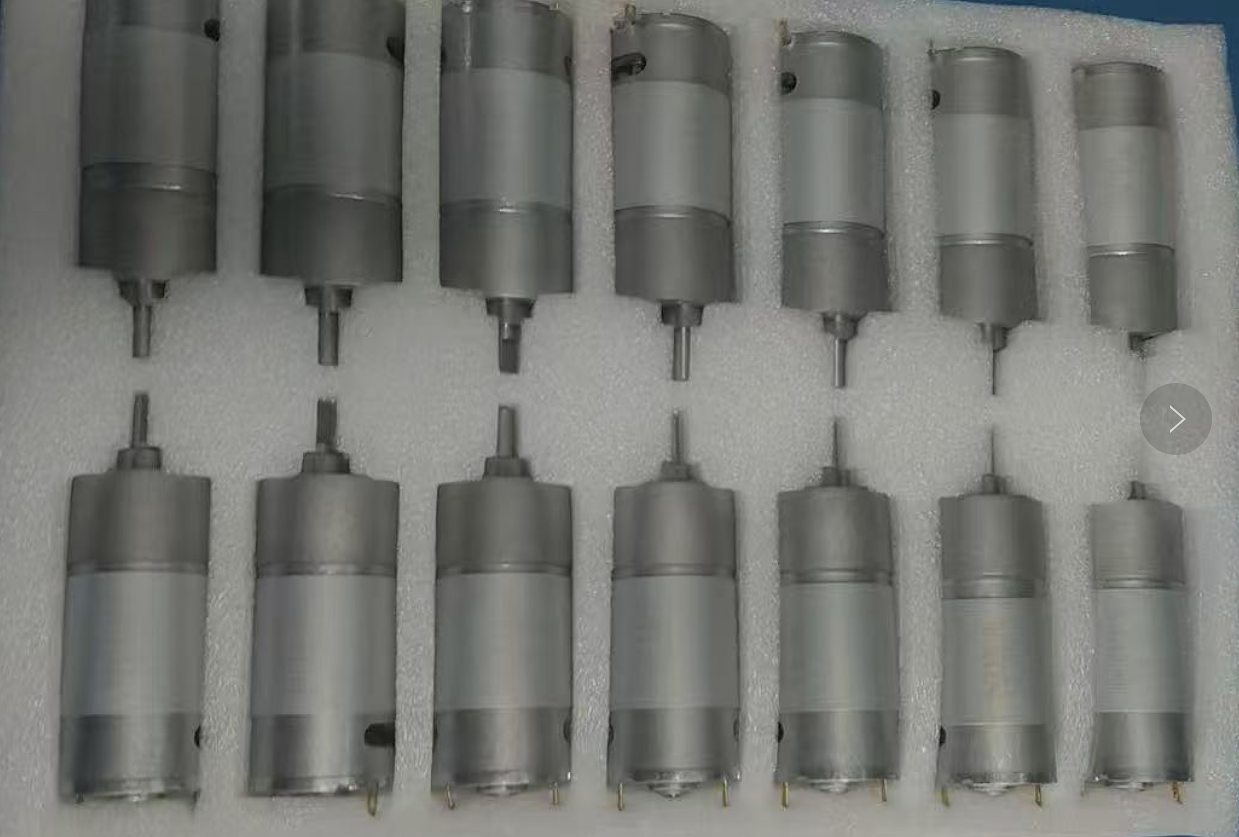

package of gear dc motor


Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
