Name: 35BYJ46 stepper motor
SKU: 0

English



PRODUCT SHOW

Tel : + 86 18963677447

Email : sales@ksyh-motor.com

Email : engineer@ksyh-motor.com

stepper motor

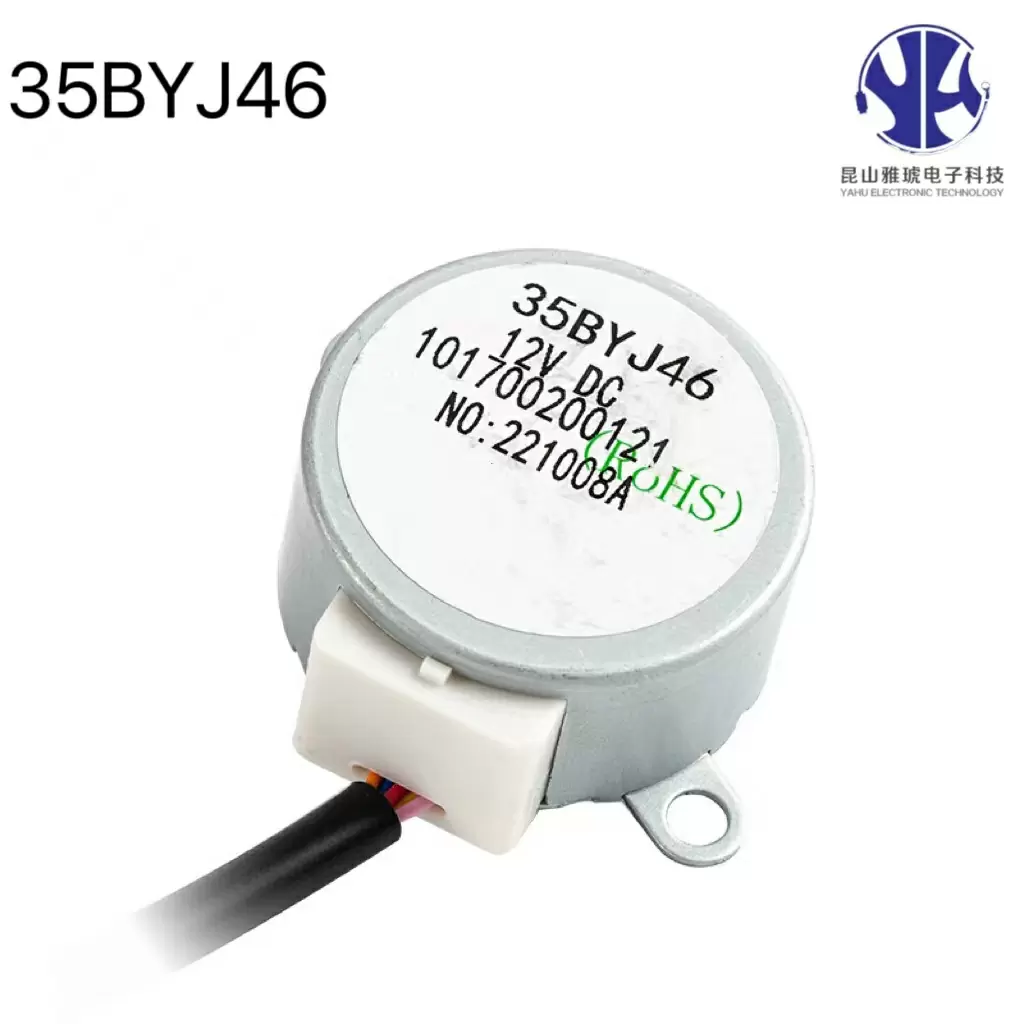

35BYJ46 stepper motor

MOQ：Depending on material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Details of cooperation

P/N

Application

capacity

Made in

Brand

cert

MOQ

packing

Lead time

35BYJ46

airconditione
up and down sweeping

80,000-100,000pcs/day

China

ROHS

REACH

10PCS

Pallet

7-10

days

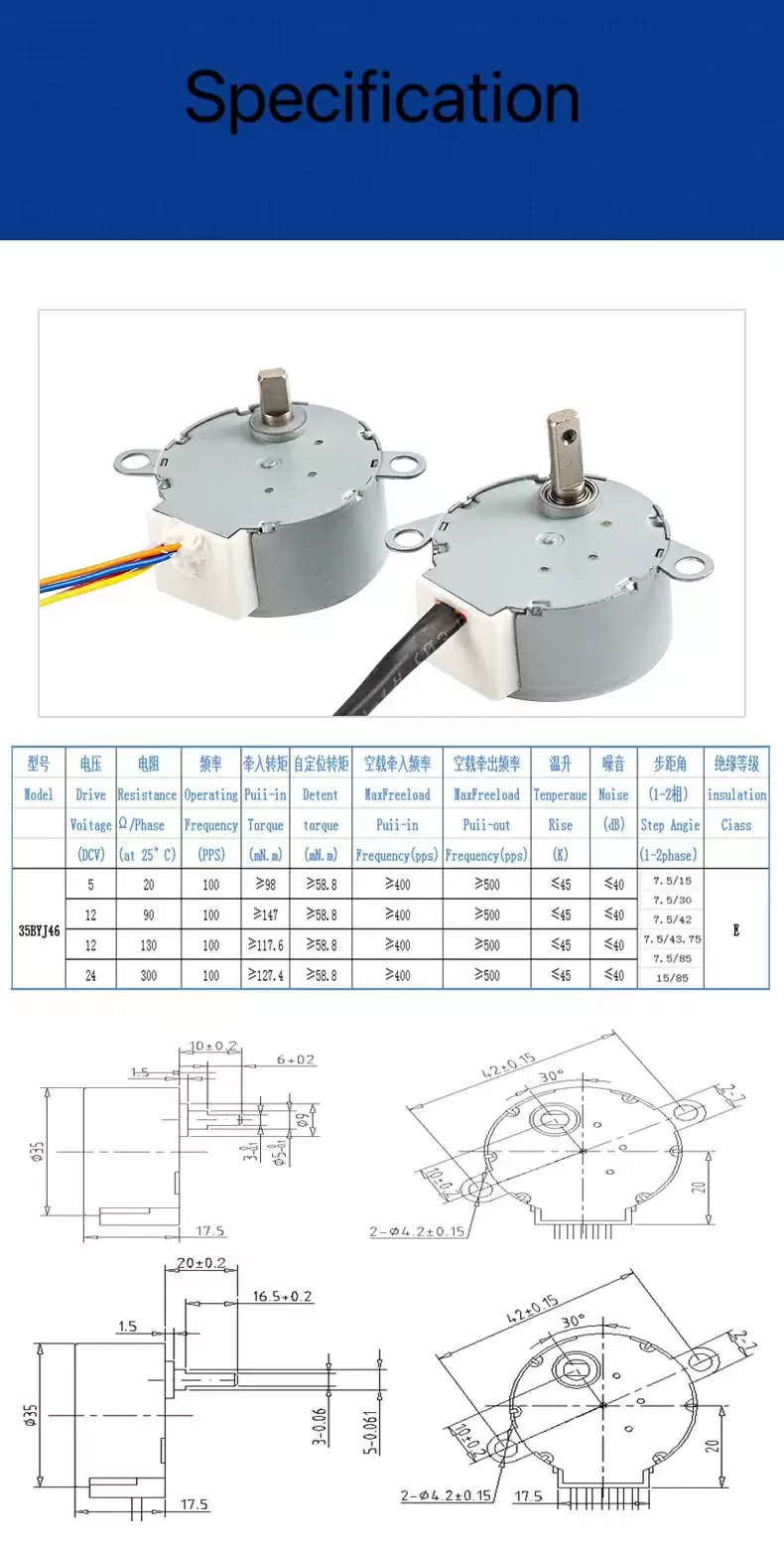

Specification

Number of phase	1-2
Basic step Angle	7.5°/85
Reduction ratio	1：85
Rated voltage(phase)	12V(DC)
Resistance(phase)at 25 ℃	100Ω+/-7%
（100pps)/pull in torque	≥117.4mN.m
cogging torque	≥68.8mN.m
Noise	≤35dB
No load pull in frequency	≥350HZ
No load pull out frequency	≥500HZ
Duty	continuous
Dielectronic strength	AC600v/1s/1mA
(DC500V)/Insulation resistance	Above 50MΩ/Min
(UL)/Insulation class (UL)	E
Temperature Rise	Below 40k/Max
Frication Torque	/
Storage Ambient Temperature	-5℃+35℃
Storage Ambient Humidity	＜75%RH

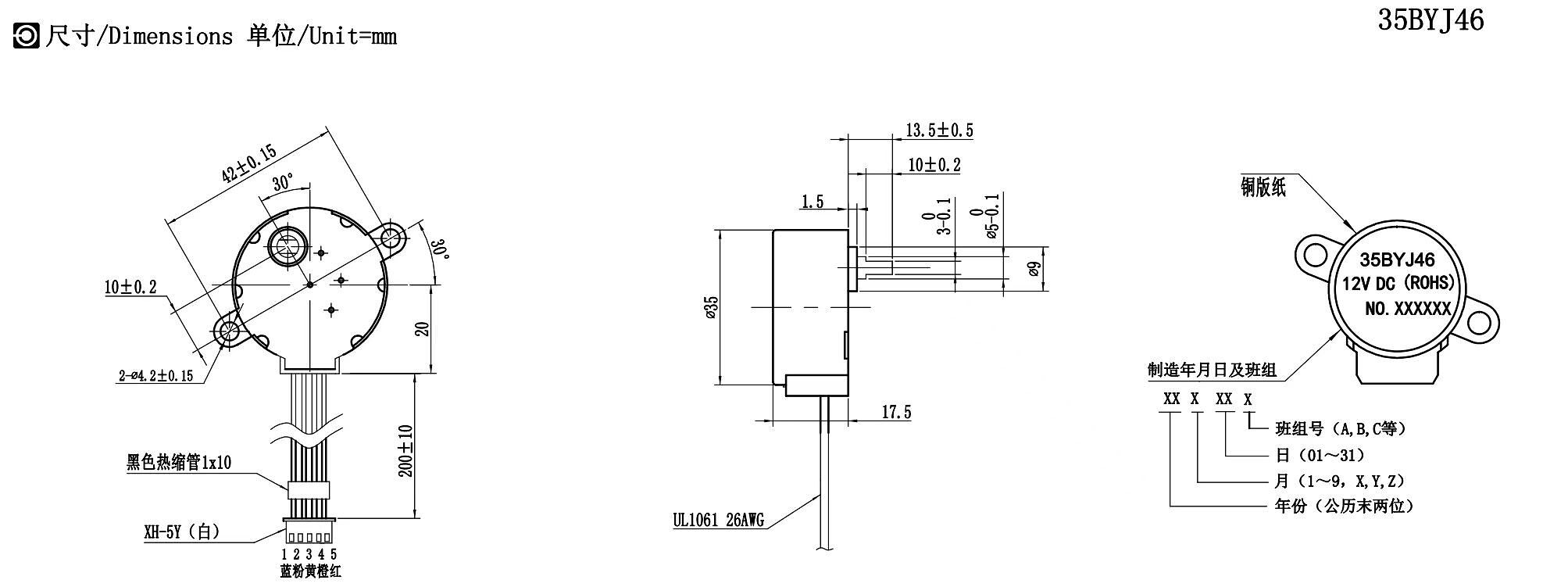

Drawing of 35BYJ46 Motor

Wiring Diagram

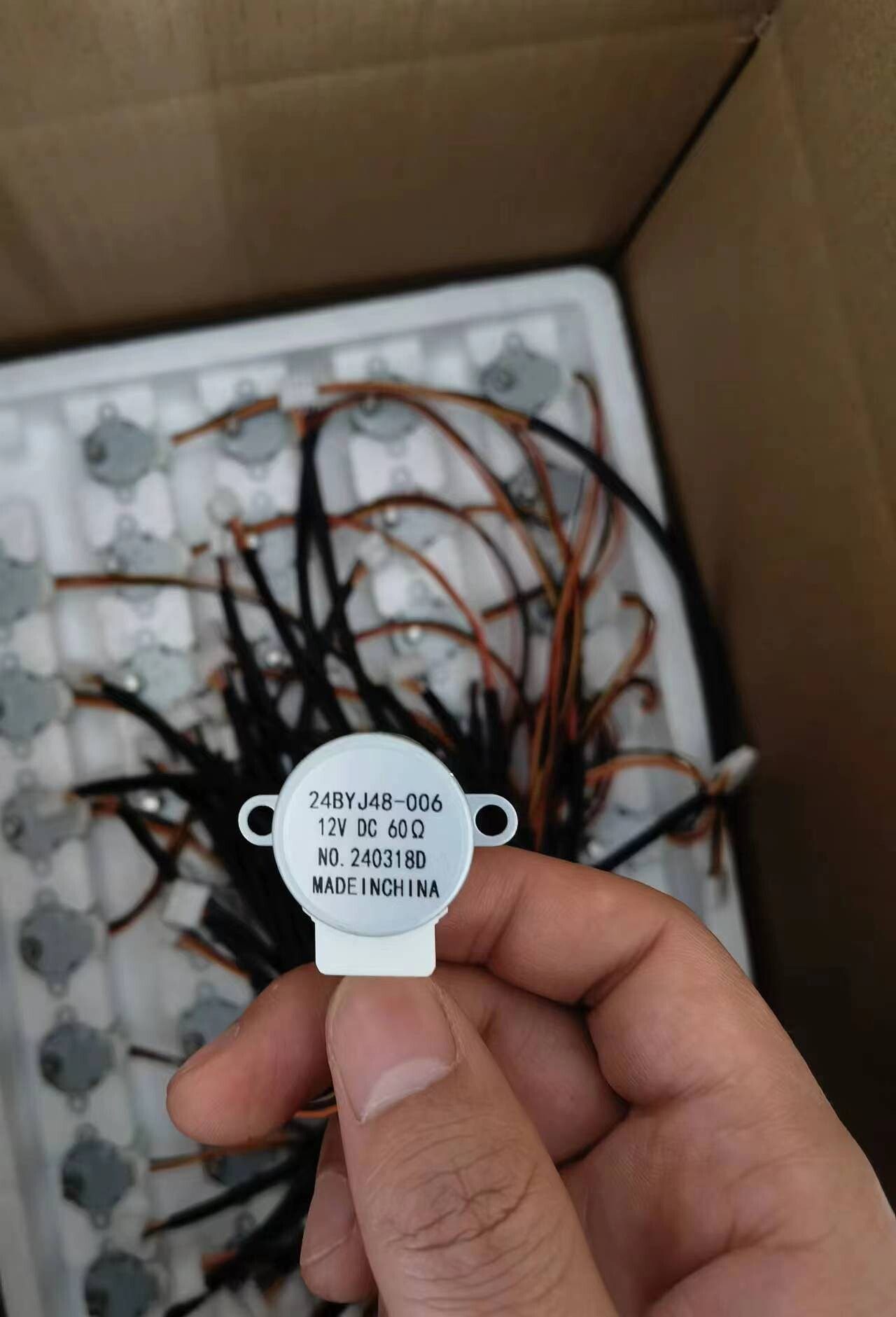

Packing

Aplication

BYJ stepper motor is used to Dehumidifier , Smart toliet ,Bathroom heater , Air-conditioned ,Electric fireplace, Celling conditoner , Monitor ,Water dispenser ,Circulating fan ,Generator, Parking air-conditioner ,Extrarange machine

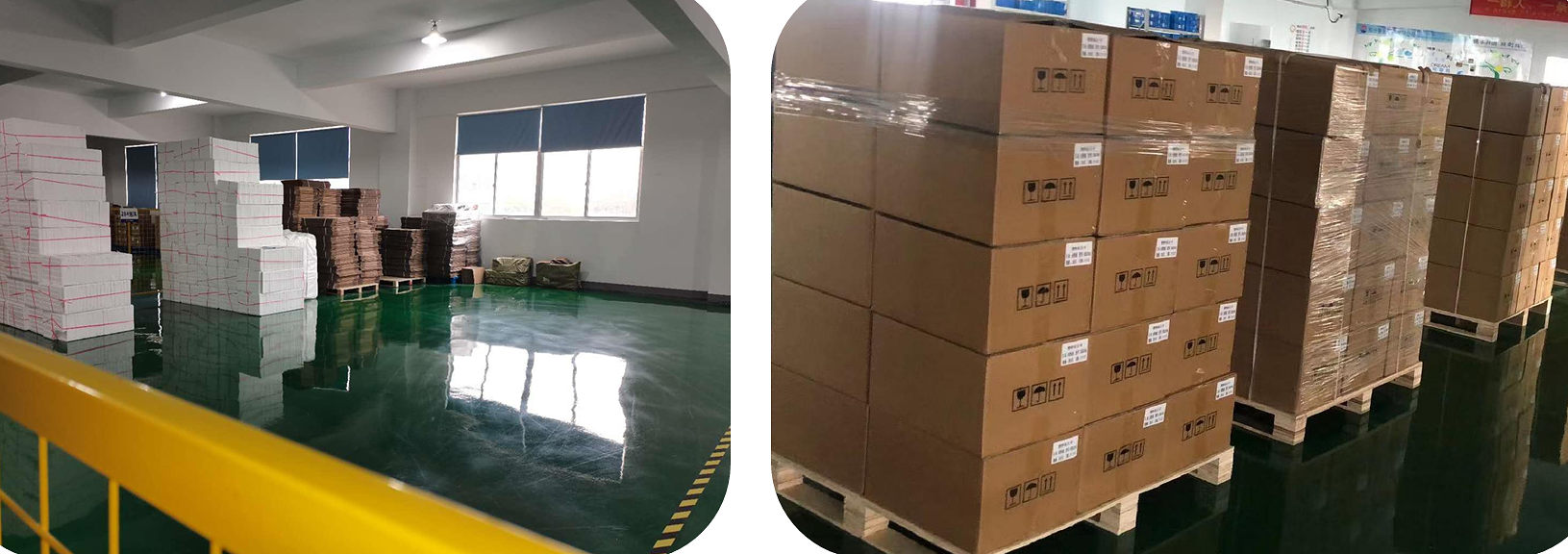

Packing warehouse

warehouse of stepper motor

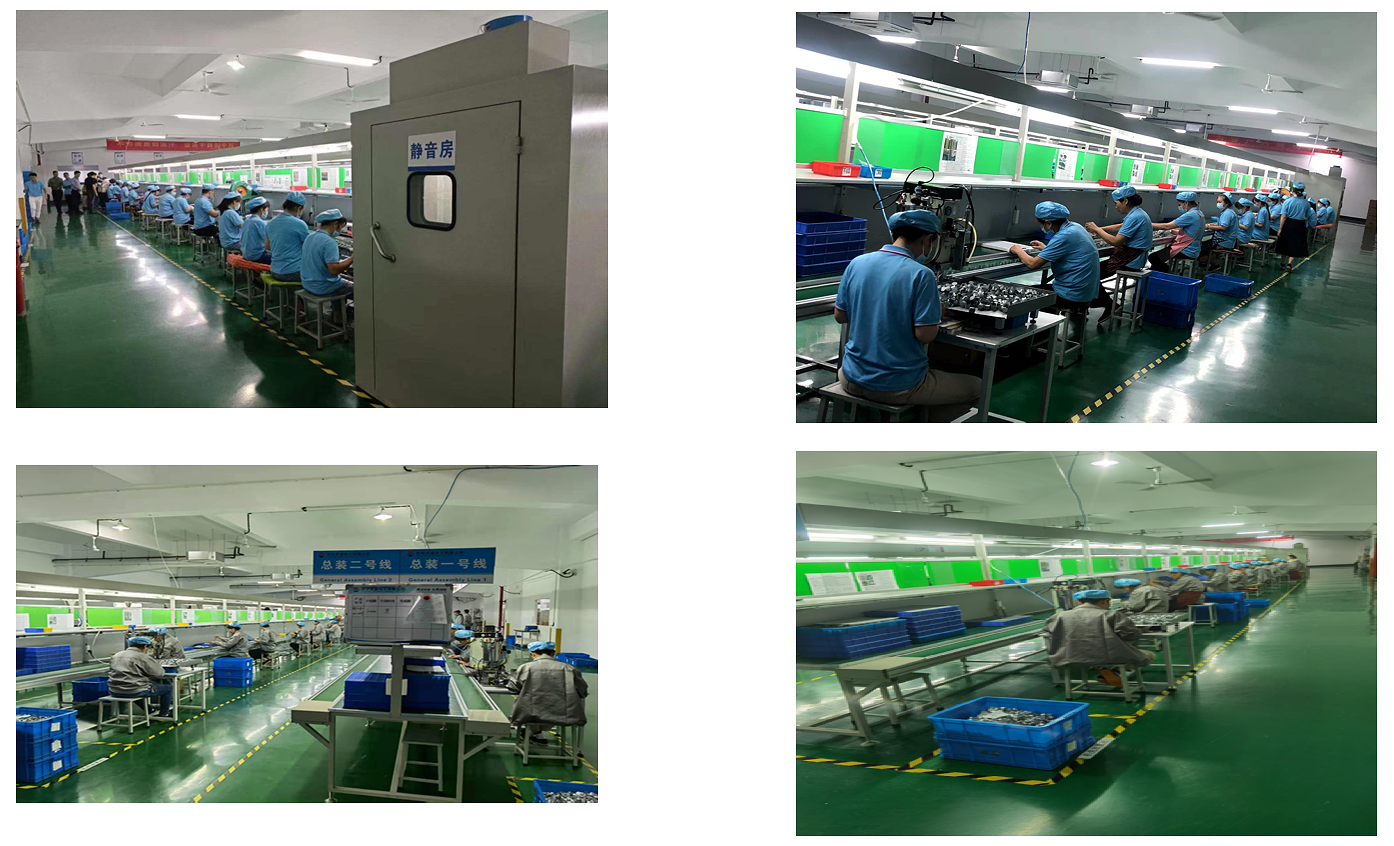

Make process

workshop stepper motor

Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
