Stepper Motor

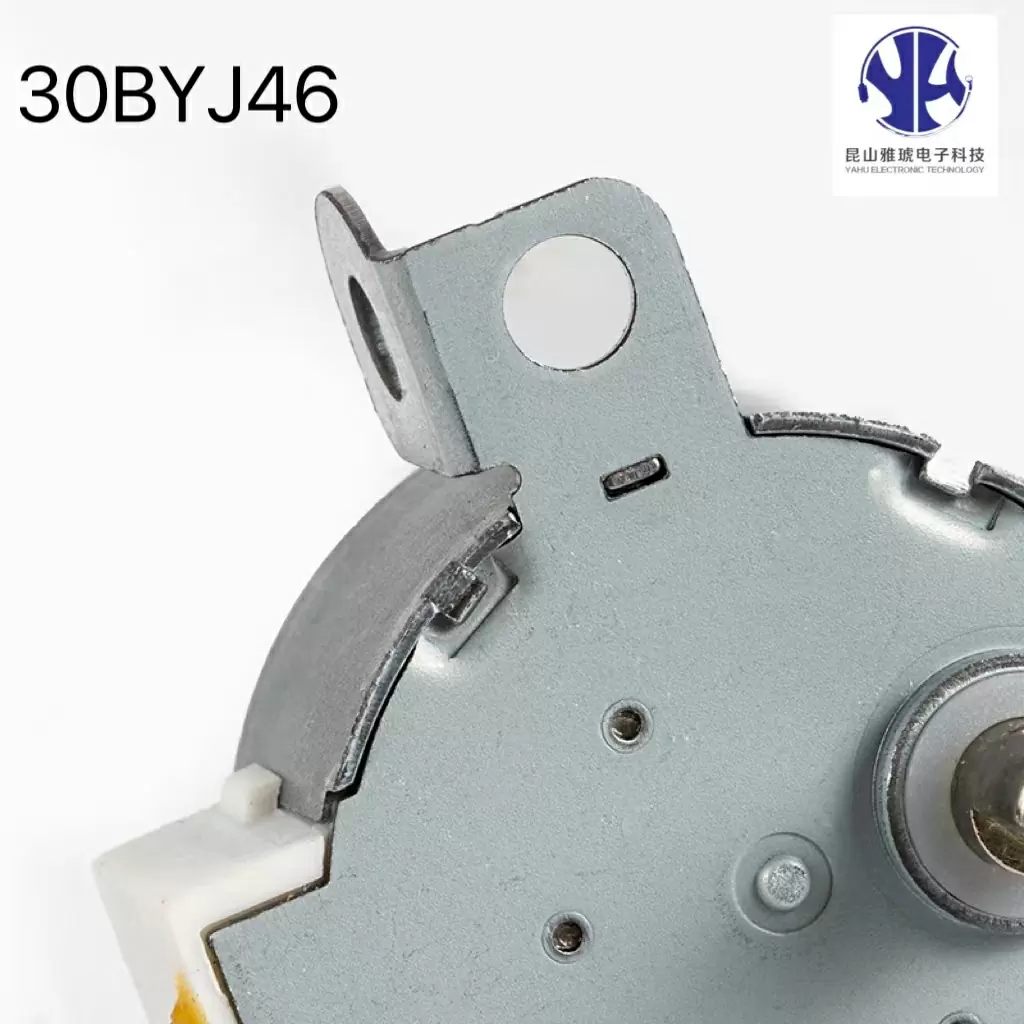

30BYJ46 Stepper Motor with smart appliance

MOQ：Depending on  material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Terms of cooperation

P/NApplicationCapacity
Made inBrandCertMOQPackingLead time
30BYJ46 air conditioner and kitchen appliance products and so on .80,000-100,000pcs/day China YH

CE

ROHS

REACH

10PCSPallet

7-12

days


Description

China wholesale 30BYJ46 Geared stepper motor manufacturers .Maybe you are looking for high quality 30BYJ46 Geared stepper motor .
Kunshan YAHU electronics  CO., LTD is a professional manufacturer & supplier that can meet your needs. Not only 30BYJ46 Geared stepper motor  we can also meet your customization needs.

YAHU gear stepper motor application in flushing systems for high-end smart sanitary ware brands,and air conditioner and kitchen appliance products and so on .

Specification

Number of phase1-2
stepper Angle7.5°
Reduction ratio1:85
Rated voltage(phase)12V(DC)
Resistance (phase)@25℃130Ω+/-7%
pull in torque(100pps)≥98mN.m
Cogging torque≥78.4mN.m
Noise≤35dB
Noload pul in≥500Hz
No load pull out frequency≥600Hz
Dutycontinuous
Dielectric Strength600V  A.C
(DC500V)/InsulationAbove 50MΩ/Min
InsulationE
Temperature Risebelow 55k/Max
Friction Torque/
Storage Ambient Temperature-5°+35°
Storage Ambient Humidity
<75%RH

Drawing of 30BYJ46 MOTOR

Drawing of 30BYJ46 stepper motor


Wiring Diagram

wiring diagram of 30byj46 stepper motor



Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
