Geared stepper motor 24BYJ48

MOQ：Depending on  material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Term details of cooperation


P/N


Application


Capacity

Made in


Brand


 Cert


MOQ


Packing


Lead time

24BYJ48

  • Up and Down Sweeping

  • Air Conditioner Cabinet

  • Swing Vane

  • Wind dir Direction


80,000-100,000pcs

China


YH


CE

ROHS

REACH



10PCS

pallet


customize for you


7-12 days


Specification of 24BYJ46 Stepper Motor

Number of phase4
stepper Angle5.625°/64
Reduction ratio1:64
Rated voltage(phase)12v DC
Resistance (phase)@25℃120Ω+/-7%
pull in torque(100pps)≥88.2mN.m
Cogging torque>39.2mN.m
Noise<40dB
Noload pul in>800pps
No load pull out frequency>1000pps
DutyContinuous
Dielectric StrengthAC600V/1s/1mA
(DC500V)/InsulationAbove 50MΩ/Min
InsulationE
Temperature RiseBelow 40K/Max
Friction Torque147-294mN.m

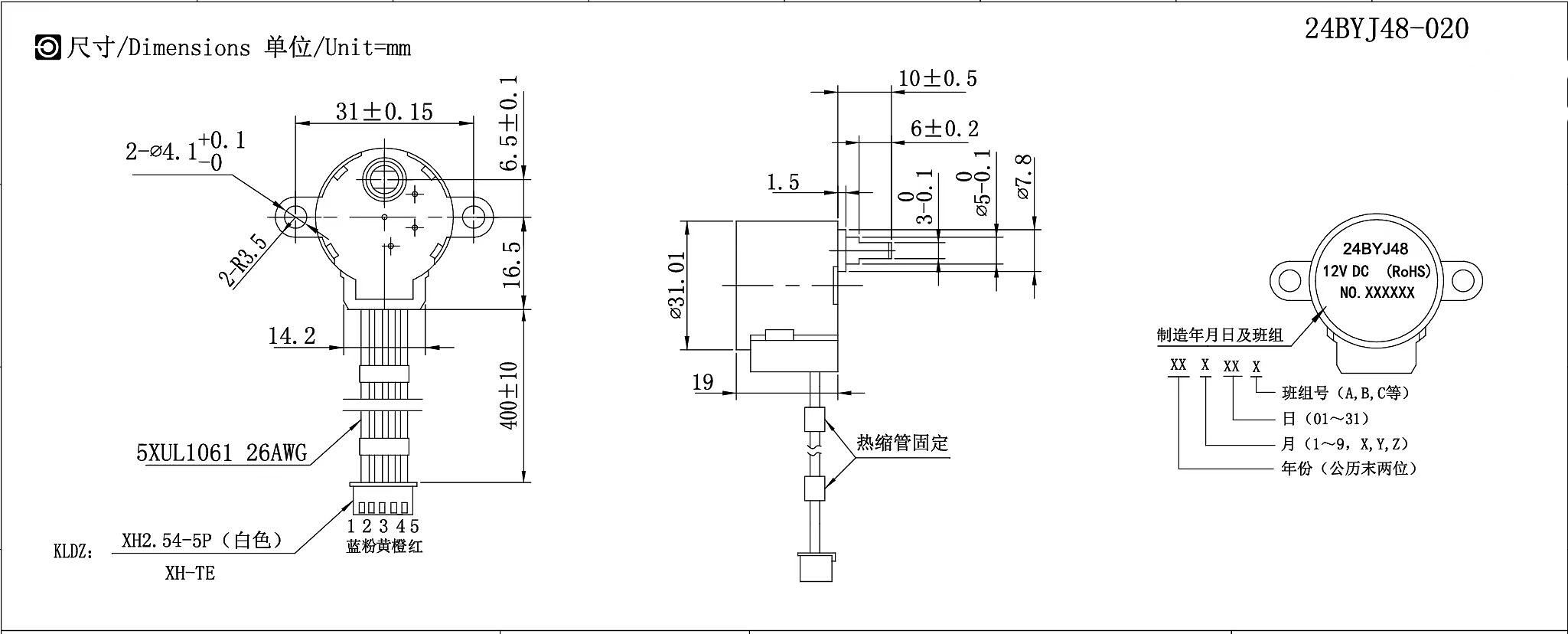

Drawing of MOTOR

drawing of 24byj48 stepper motor


Wiring Diagram

wiring diagram of byj stepper motor

 Aplication
application of stepper motor

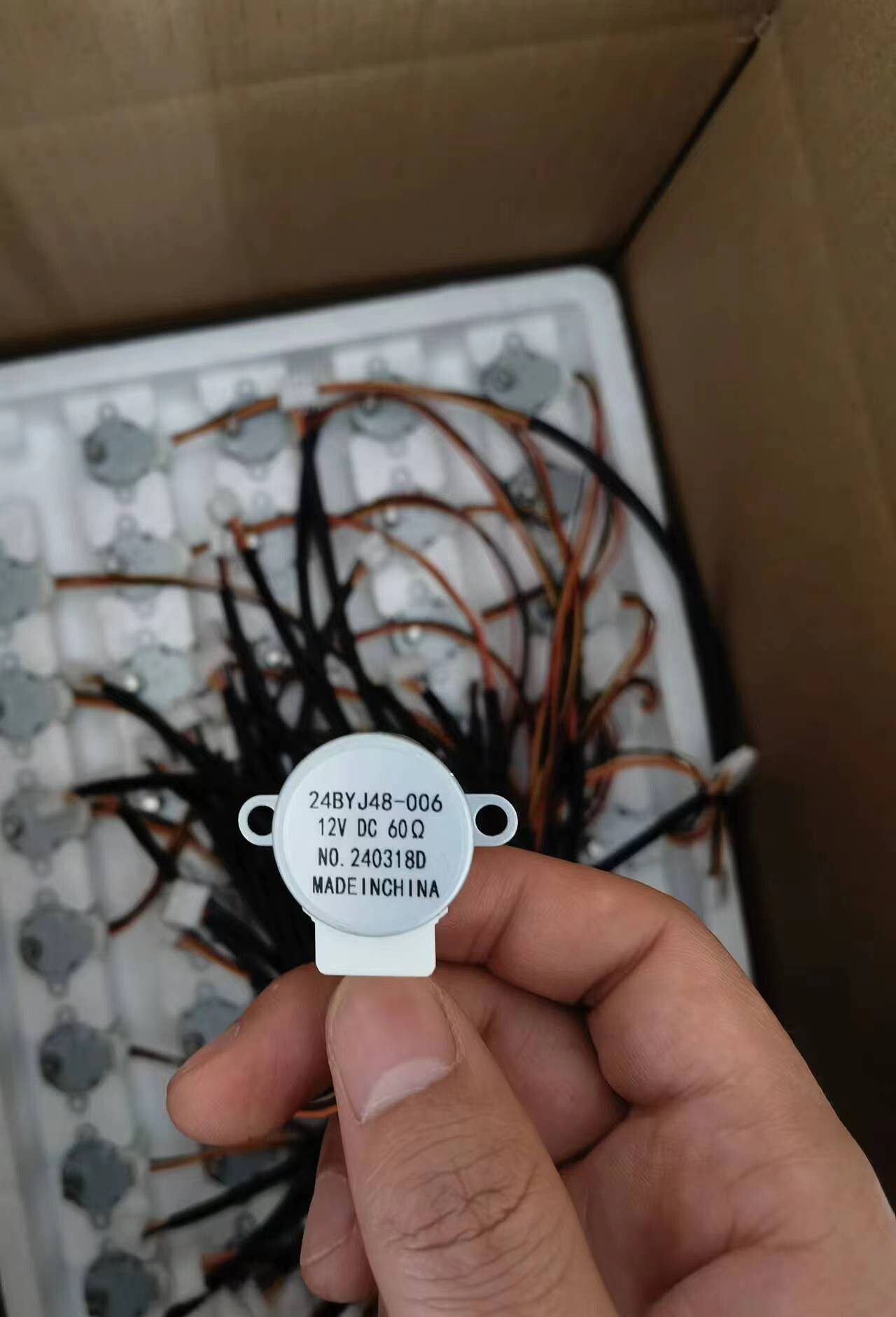

Packing TYPE

package of BYJ stepper motor


Packing warehouse

warehouse of stepper moto

Make process

workshop of making stepper motor

Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
