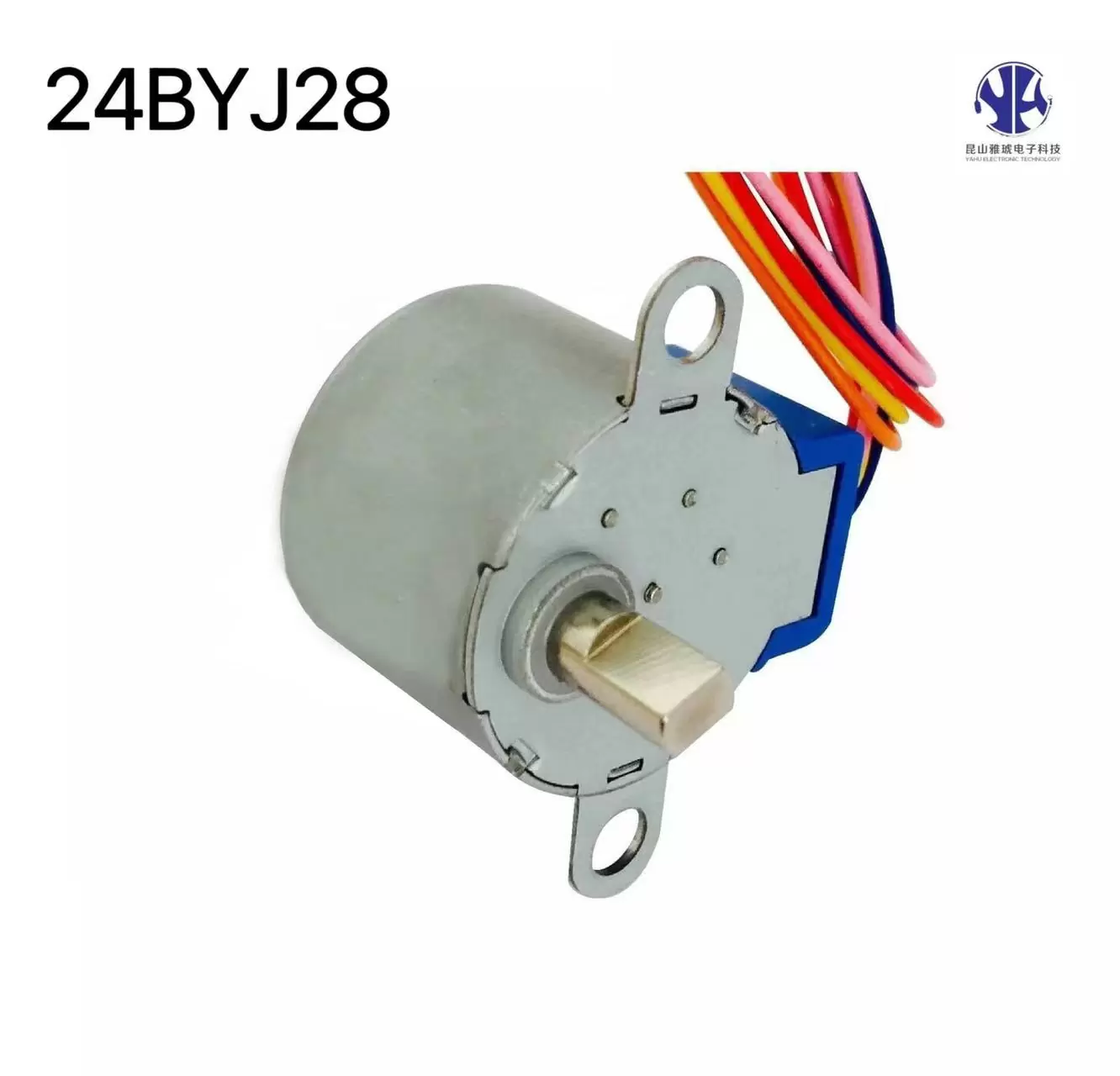

24BYJ28 Stepper Motor

MOQ：Depending on  material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Detail of cooperation

P/NApplication capacitycountry of originBrand certificationMOQpackingLead time
24BYJ28

  • Up and Down Sweeping

  • Air Conditioner Cabinet

  • Swing Vane

80000-100000

pcs/day

ChinaYH

CE

ROHS

REACH

10 PCSpallet
7-12  days


      24BYJ28 Stepper Motors.We offer customized, high-quality brushless DC motors for various applications. Based in Kunshan, China, we are a manufacturer with our own industrial park and high-precision auto assembly facilities. Our motors are perfect for Up and Down Sweeping, Air Conditioner Cabinet, Swing Vane, and Wind Direction Motors. With professional testing machines and a QC team, we ensure full inspection for each mass production. Fast lead time and various payment terms available. Contact us for customized service and more details!

Specification

Number of Phase2
step Angel5.625°/25
Reduction ratio1:25
Reted voltage (phase)12V DC
Resistance (phase)@25℃120Ω+/-7%
（100pps)/pull in torque≥45mN.m
cogging torque≥35mN.m
Noise<45
No load pull in frquency≥900Hz
No load pull out  frquency≥1000Hz
Dutycontinuous
Dielectric strengthAC 600V/1S/1mA
(DC500V)/InsulationAbove 50MΩ/Min
(UL)/InsulationE
Temperature RiseBelow 40K/Max
Friction Torque147-294mN.m
Storage Ambient Temperature-5℃+35℃
Storage Ambient Humidity≤75%RH

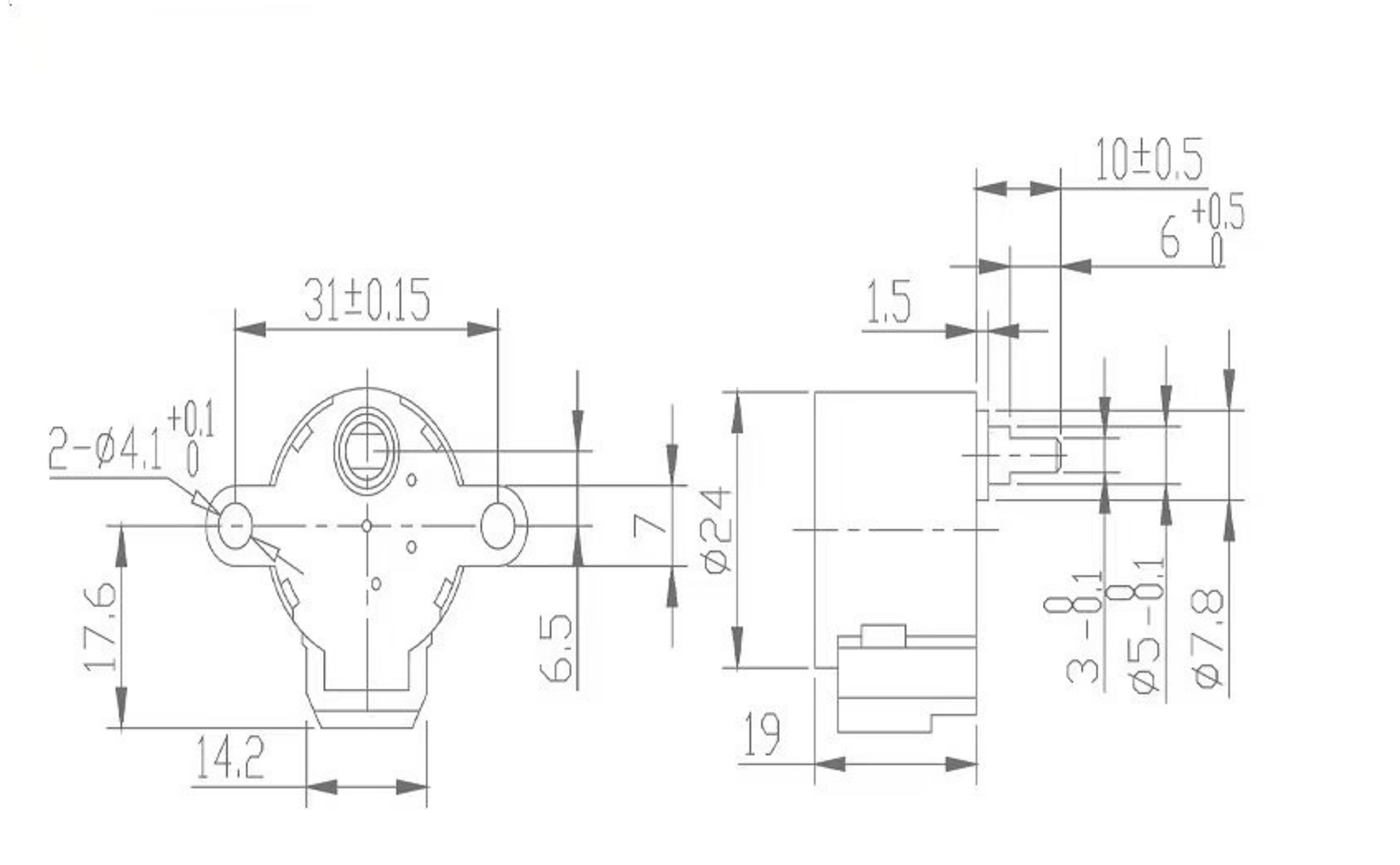

Drawing of 24BYJ28 Motor


drawing of 24byj28 stepper motor

 Wiring Diagram

wiring diagram of 24byj28 stepper motor

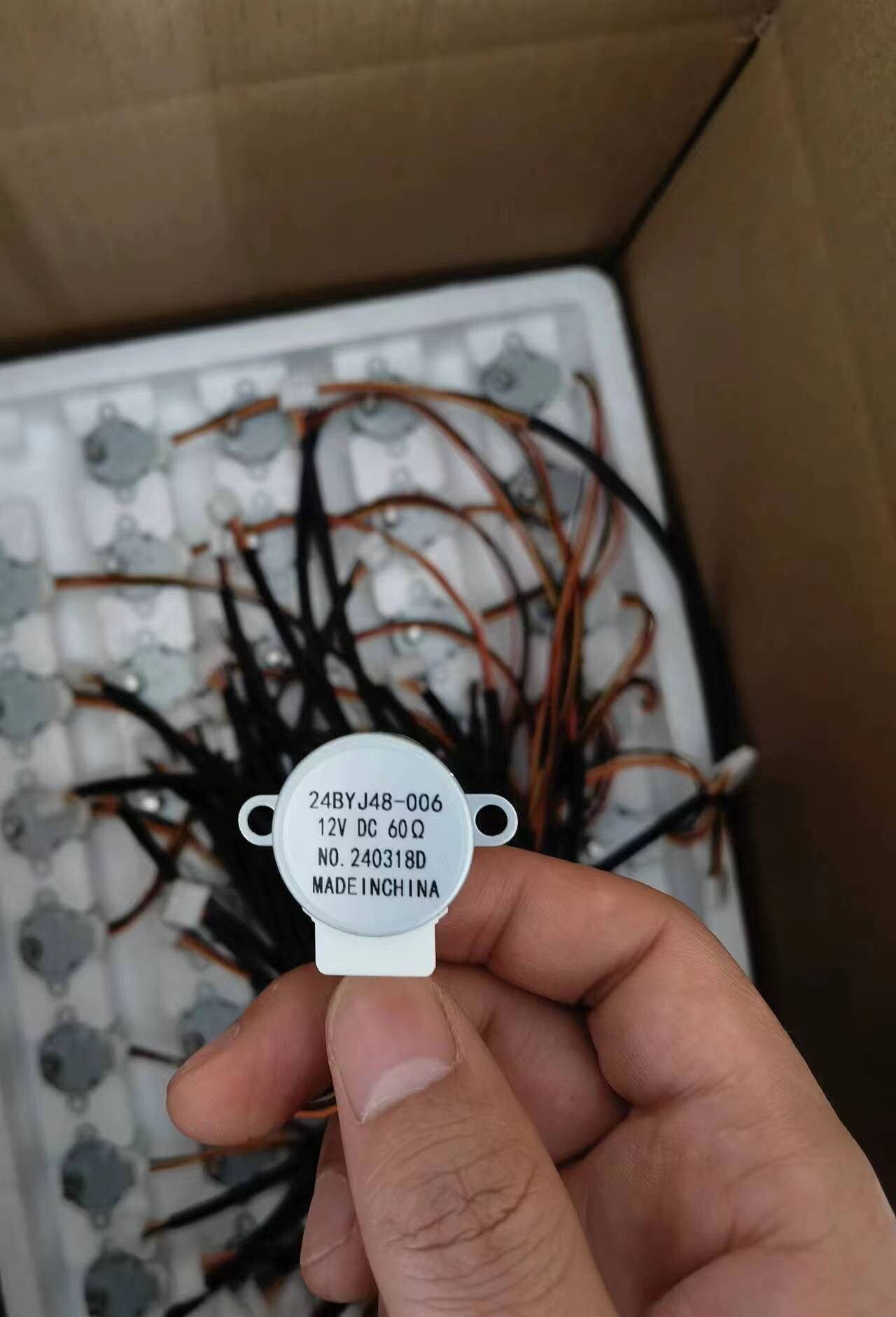

Packing

package of 24byj28 stepper motor

Aplication


BYJ stepper motor is used to Dehumidifier , Smart toliet ,Bathroom heater , Air-conditioned ,Electric fireplace, Celling conditoner , Monitor ,Water dispenser ,Circulating fan ,Generator, Parking air-conditioner ,Extrarange machine

Make process

make process of BYJ stepper motor



Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
