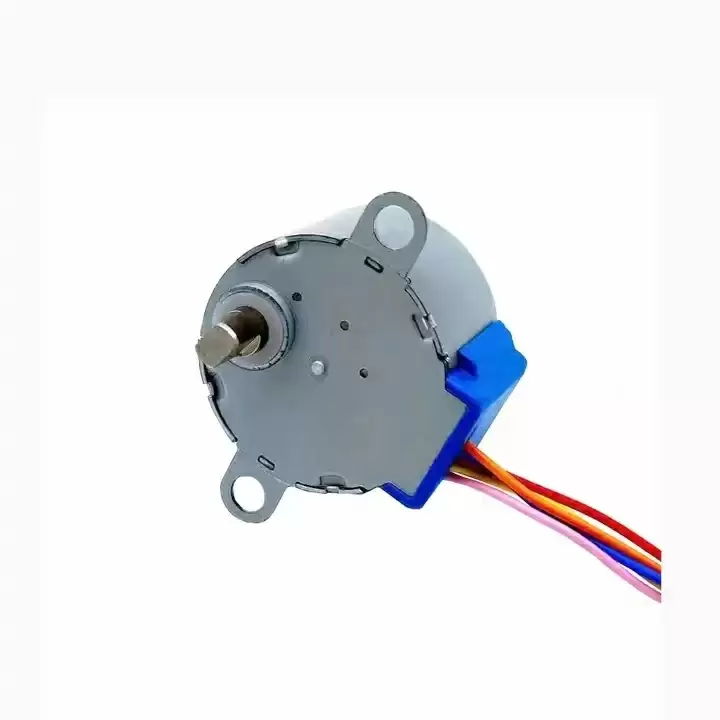

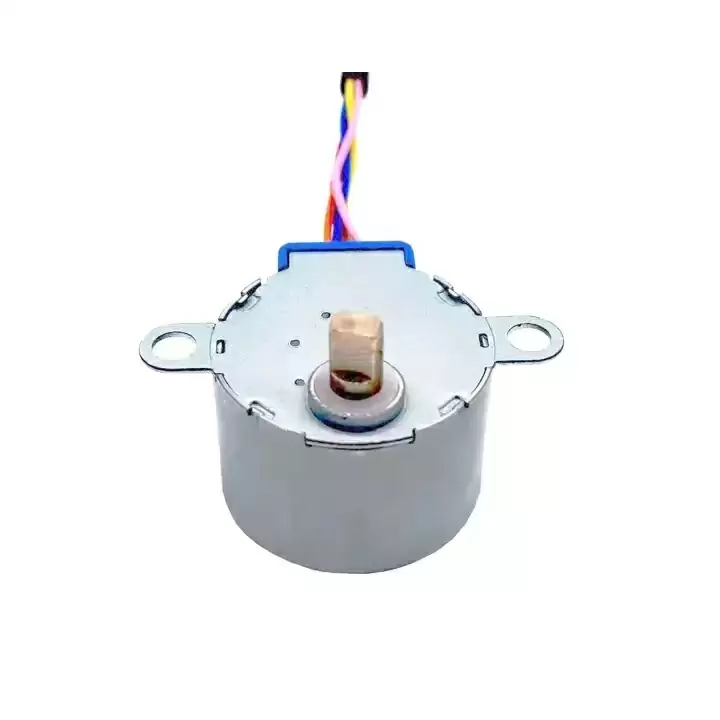

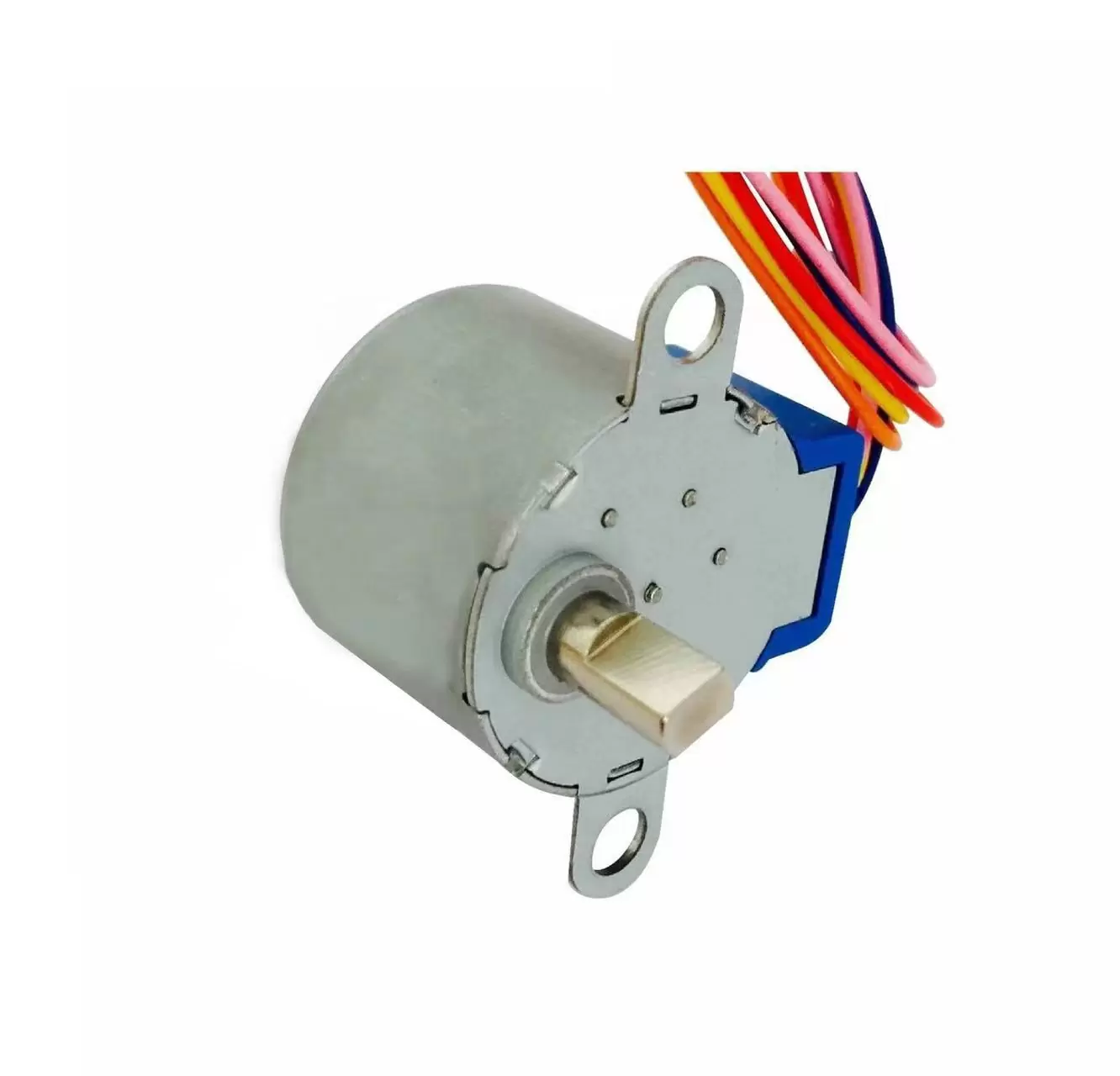

Geared stepper motor 24BYJ48

MOQ：Depending on material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Geared stepper motor 24BYJ48 DC 12V MICRO stepper motor for vacuum cleaner

Term details of cooperation

P/N

Application

Capacity

Made in

Brand

Cert

MOQ

Packing

Lead time

24BYJ48

Up and Down Sweeping
Air Conditioner Cabinet
Swing Vane
Wind dir Direction

80,000-100,000pcs

China

ROHS

REACH

10PCS

pallet

customize for you

7-12 days

Specification of 24BYJ46 Stepper Motor

Number of phase	4
stepper Angle	5.625°/64
Reduction ratio	1:64
Rated voltage(phase)	12v DC
Resistance (phase)@25℃	120Ω+/-7%
pull in torque(100pps)	≥88.2mN.m
Cogging torque	>39.2mN.m
Noise	<40dB
Noload pul in	>800pps
No load pull out frequency	>1000pps
Duty	Continuous
Dielectric Strength	AC600V/1s/1mA
(DC500V)/Insulation	Above 50MΩ/Min
Insulation	E
Temperature Rise	Below 40K/Max
Friction Torque	147-294mN.m

Drawing of MOTOR

drawing of 24byj48 stepper motor

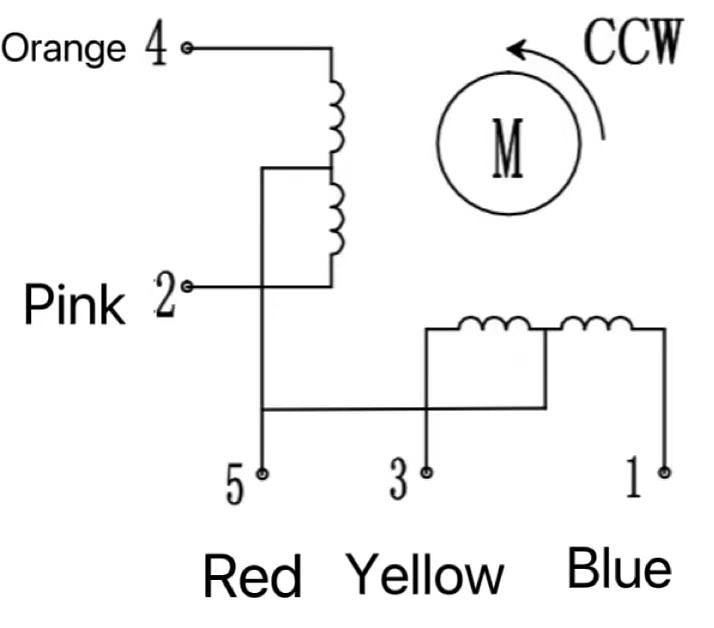

Wiring Diagram

wiring diagram of 24byj48 stepper motor

Aplication

Packing TYPE

Packing warehouse

warehouse of stepper moto

Make process

workshop of making stepper motor Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
