20BYJ46 Stepper Motor

MOQ：Depending on material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Detail of cooperation

P/N

Application

capacity

country of origin

Brand

certification

MOQ

packing

Lead time

20BYJ46

robot
fan
Money detector

80000-10000

pcs/day

China

ROHS

Reach

10pcs

pallet

7-12 days

20BYJ46 with Chinese wholesale supply low noise 12v permanent magnet stepping motor

Widely used in robot,lock. Auto shutter, fan,Slot machine,Money detector, Coin refund devices,Currency Count machine, Towel dispensers,adjusment mechanism, limit switch

Suitable to small diameter, low noise and big toque application.We can provide samples for your test.

Rotating speed is constant and can be made as you required.

specification

Number of phase	4
Step Angel	7.5°/85
Reduction Ratio	1：85
Rated Voltage(phase)	12V (DC)
Resistance (phase)@25℃	150Ω+/-7%
（100pps)/pull in torque	≥49mN.m
cogging torque	≥29.4mN.m
Noise	≤40dB
No load pull in frequency	≥350PPS
No load pull out frequency	≥400PPS
Duty	continuous
Dielectric Strength	AC600V/1S/1mA
(DC 500V)/Insulation Resistance	Above 100MΩ/Min
(UL)/Insulation class	E
Temprature rise	Below 40k/Max
Friction Torque	/
storage Ambient temperature	-5℃-35℃
storage Ambient Humidity	＜75%RH

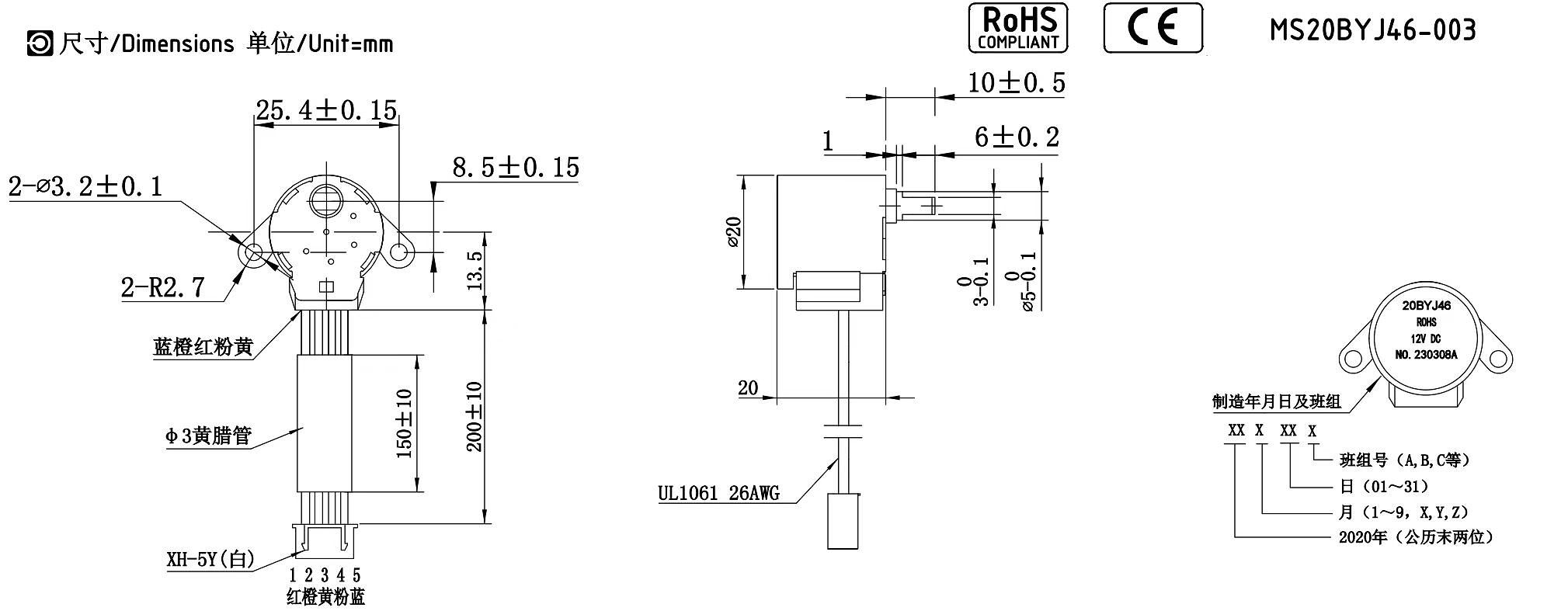

Drawing of 20BYJ46 motor

Wiring Diagram

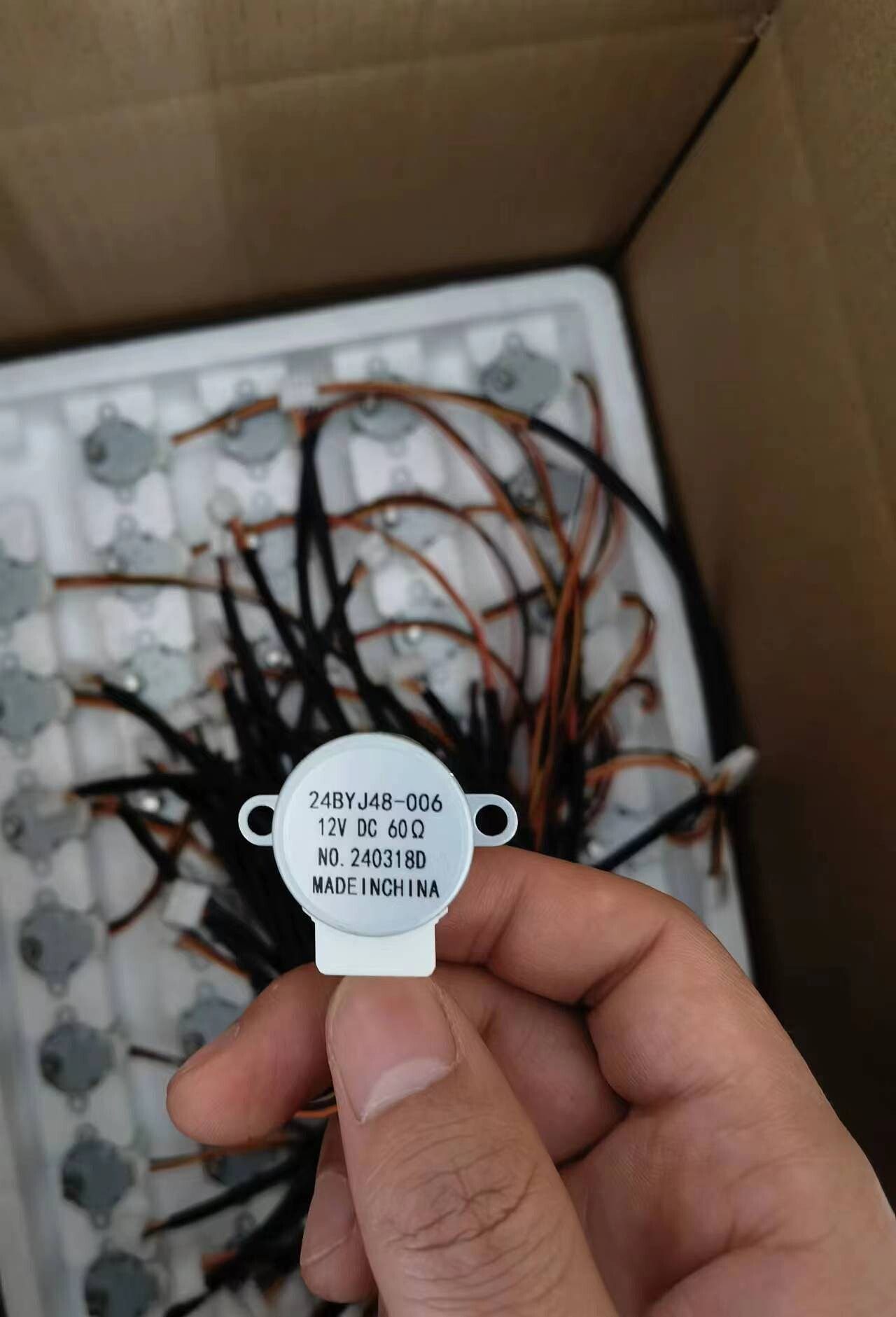

Packing

Aplication

BYJ stepper motor is used to Dehumidifier , Smart toliet ,Bathroom heater , Air-conditioned ,Electric fireplace, Celling conditoner , Monitor ,Water dispenser ,Circulating fan ,Generator, Parking air-conditioner ,Extrarange machine

warehouse of stepper motor

Make process

workshop of stepper motor

Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
