Name: 20BYJ46 stepper motor
SKU: 0

English



PRODUCT SHOW

Tel : + 86 18963677447

Email : sales@ksyh-motor.com

Email : engineer@ksyh-motor.com

stepper motor

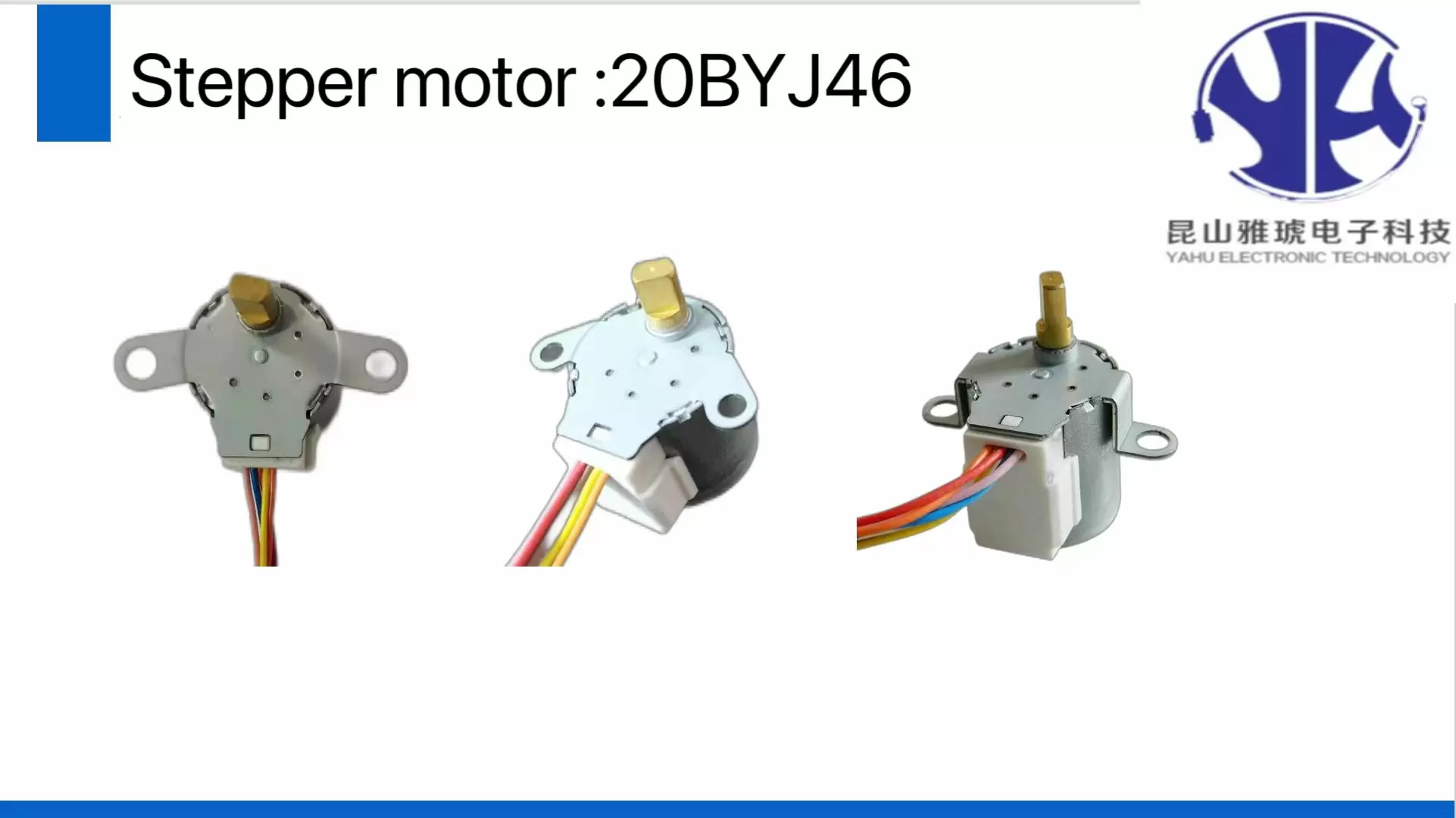

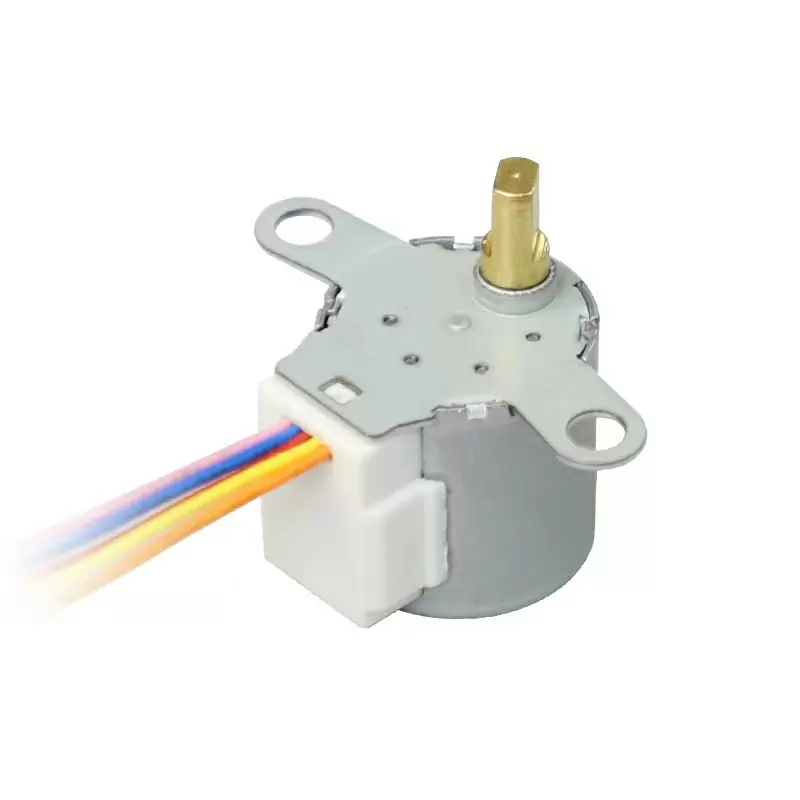

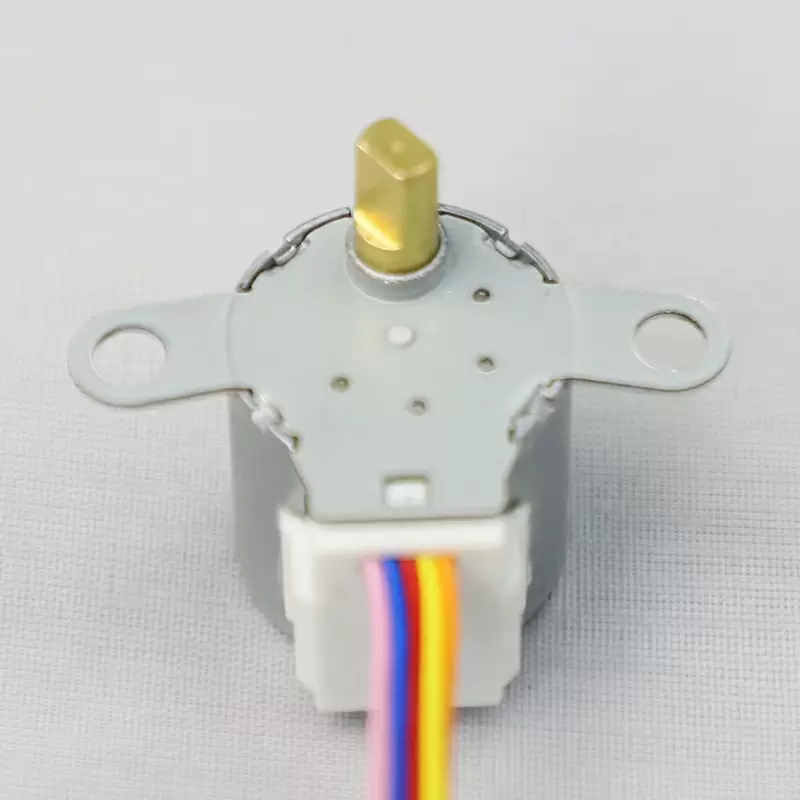

20BYJ46 stepper motor

MOQ：Depending on material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Terms of cooperation

P/N

Application

Capacity

Made in

Brand

Cert

MOQ

Packing

Lead time

20byj46

air conditioner
monitoring
electric fans
smart toilet

80,000-100,000pcs/day

CHINA

ROHS

REACH

10PCS

PALLET

7-12

days

20BYJ46 stepper motor widely used in air conditioning, monitoring,electric fans, smart toilet, electronic locks, valves, packaging machinery, food machinery, printing machinery, semiconductor processing, medical machinery, textile machinery, office automation equipment, fitness equipment.

specification

Number of phase	4
stepper Angle	7.5°/85
Reduction ratio	1:85
Rated voltage(phase)	12V(DC)
Resistance (phase)@25℃	150Ω+/-7%
pull in torque(100pps)	≥49mN.m
Cogging torque	≥29.4mN.m
Noise	≤40dB
Noload pul in	≥350PPS
No load pull out frequency	≥400PPS
Duty	continuous
Dielectric Strength	AC600V/1S/1mA
(DC500V)/Insulation	Above 100MΩ/Min
Insulation	E
Temperature Rise	Below 40K/Max
Friction Torque	/
Storage Ambient Temperature	-5℃-35℃-
Storage Ambient Humidity	<75%RH

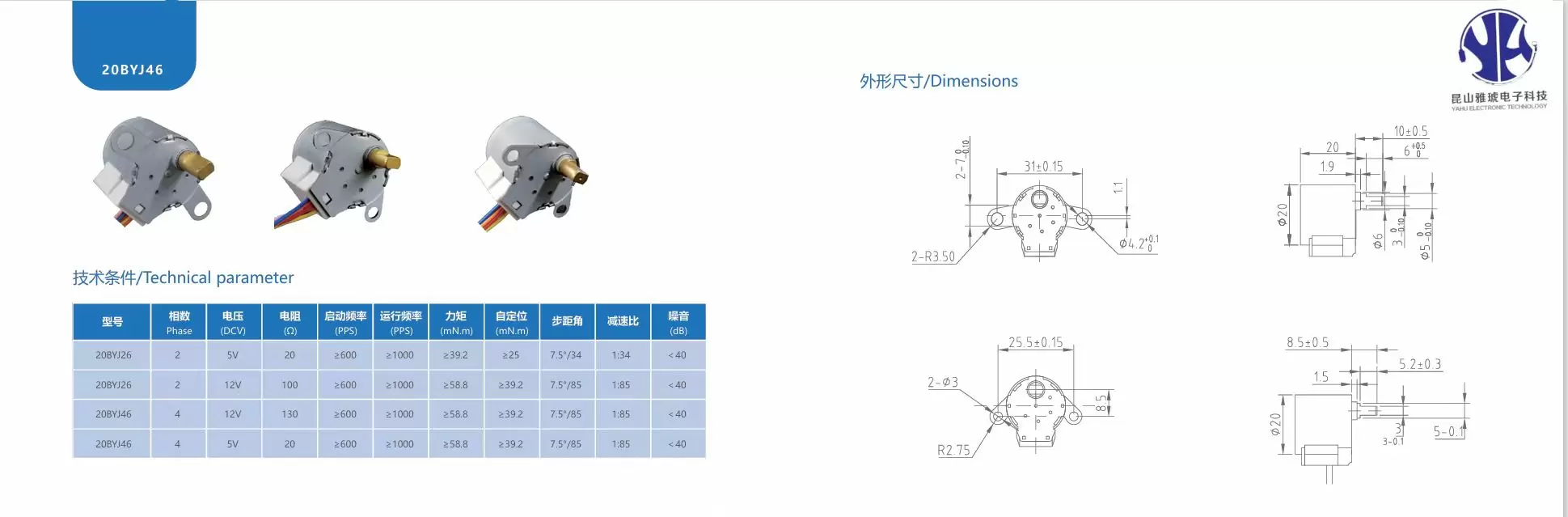

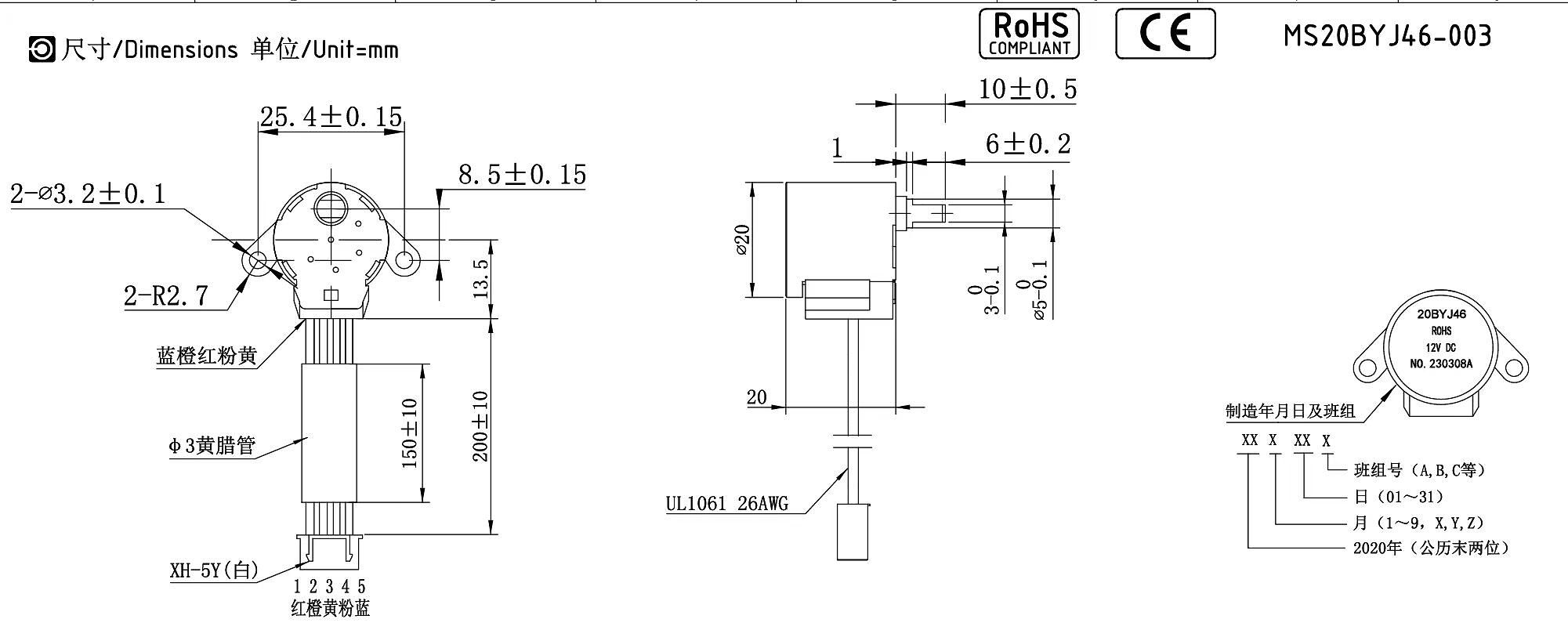

Drawing of 29BYJ46 MOTOR

drawing of 20byj46 stepper motor

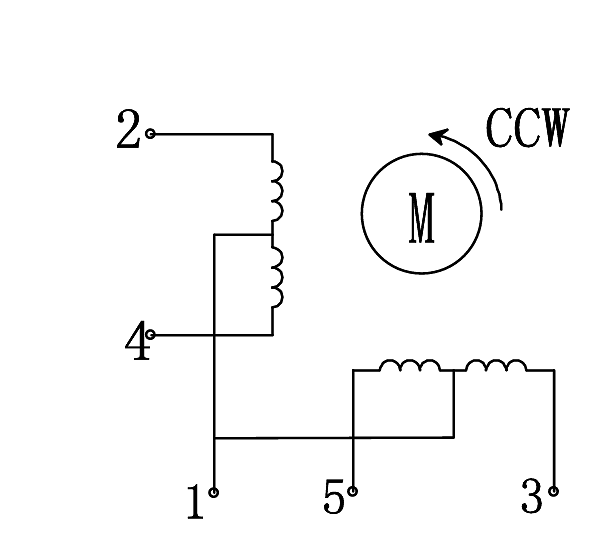

Wring Diagram

Packing

pakage of 20byj46 stepper motor

Aplication

Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
