Name: 35BYJ412 PM Stepper Motors for toy
SKU: 0

English



PRODUCT SHOW

BYJ stepper motor

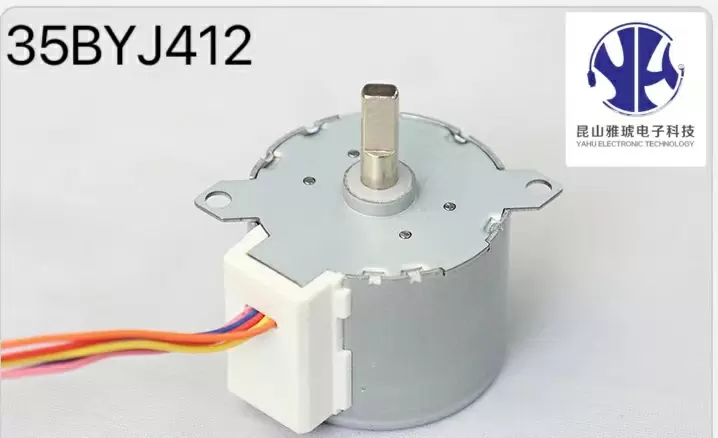

35BYJ412 PM Stepper Motors for toy

MOQ：Depending on material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

Terms of cooperation

P/N

Application

Capacity

Made in

Brand

Cert

MOQ

Packing

Lead time

35BYJ412

TOYS

80,000-100,000PCS/days

China

ROHS

REACH

10PCS

pallet

7-12

days

Specification

Number of Phase	1-2
Basic step Angle	3.75°/42.5
Reduction ratio	1：42.5
Rated voltage (phase)	12V(DC)
Resistance (phase)at 25℃	70Ω+/-7%
（100pps)/pull in torque	≥298mN.m
cogging torque	≥147mN.m
Noise	≤45dB
No load pull in frequency	≥350Hz
No load pull out frequency	≥350Hz
Duty	continious
Dielectric strength	AC600V/1S/1mA
(DC500V)/Insulation resistance	Above 100MΩ/Min
(UL)Insulation class (UL)	E
Temperature rise	Below 60K/Max
Friction Torque	/
storage Ambient temperature	-5℃+35℃
storage Ambient Humidtiy	<75%RH

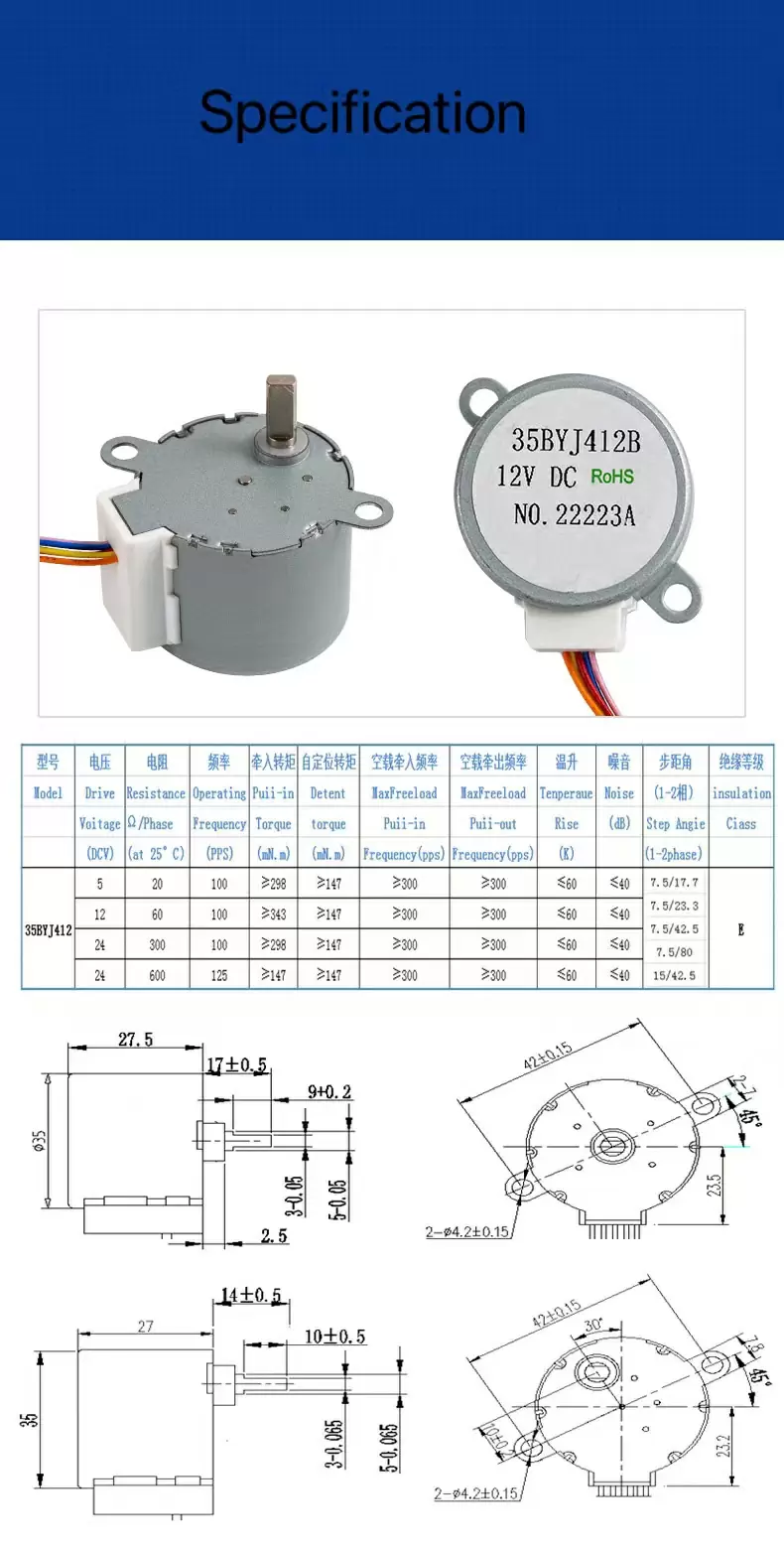

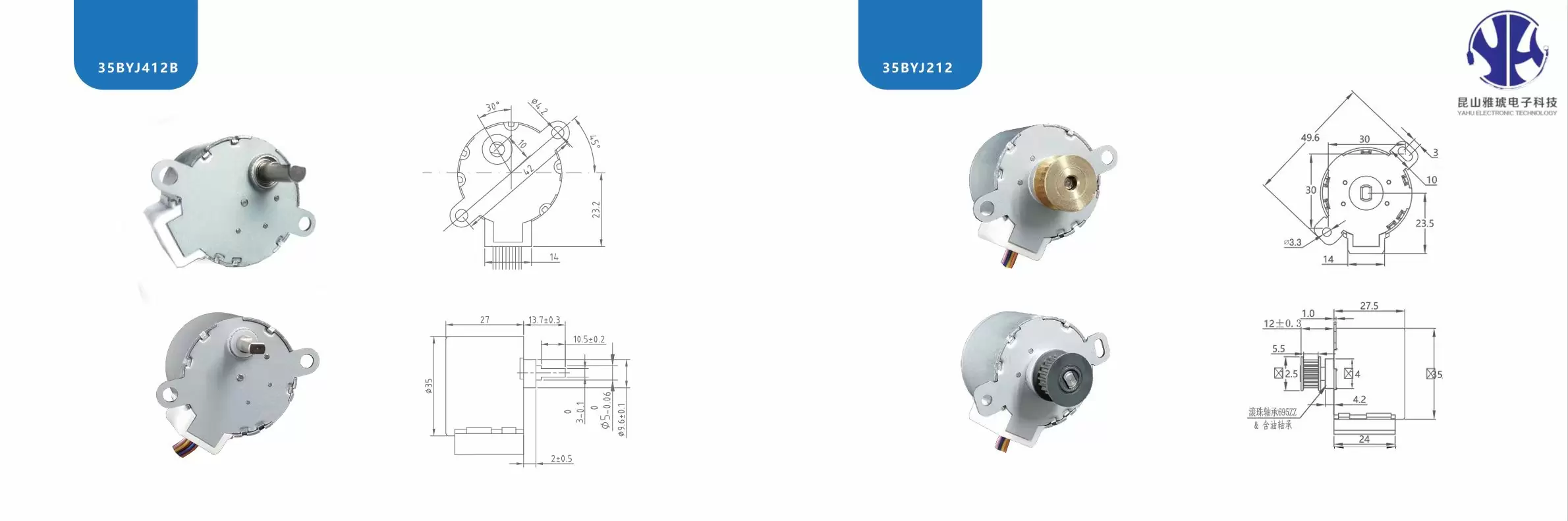

Drawings of 35BYJ412 MOTOR

Wiring Diagram

Pallet

Aplication

Make process

Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
