Name: stepper motor 28byj48
SKU: 0

English



PRODUCT SHOW

BYJ stepper motor

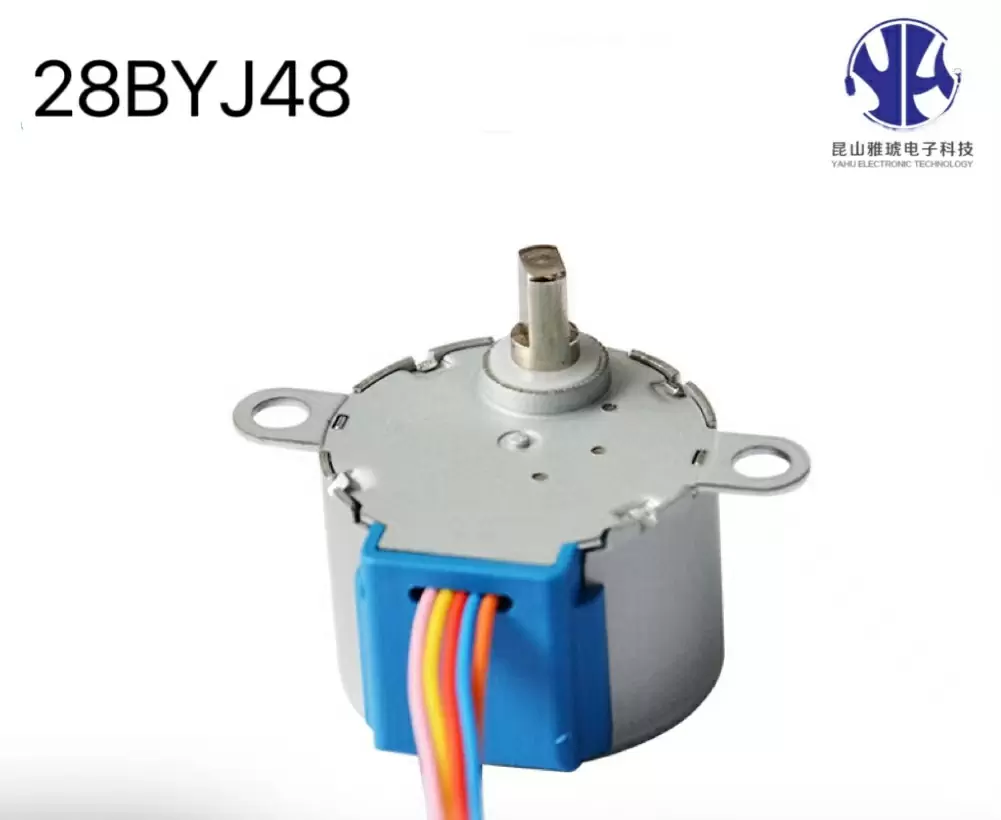

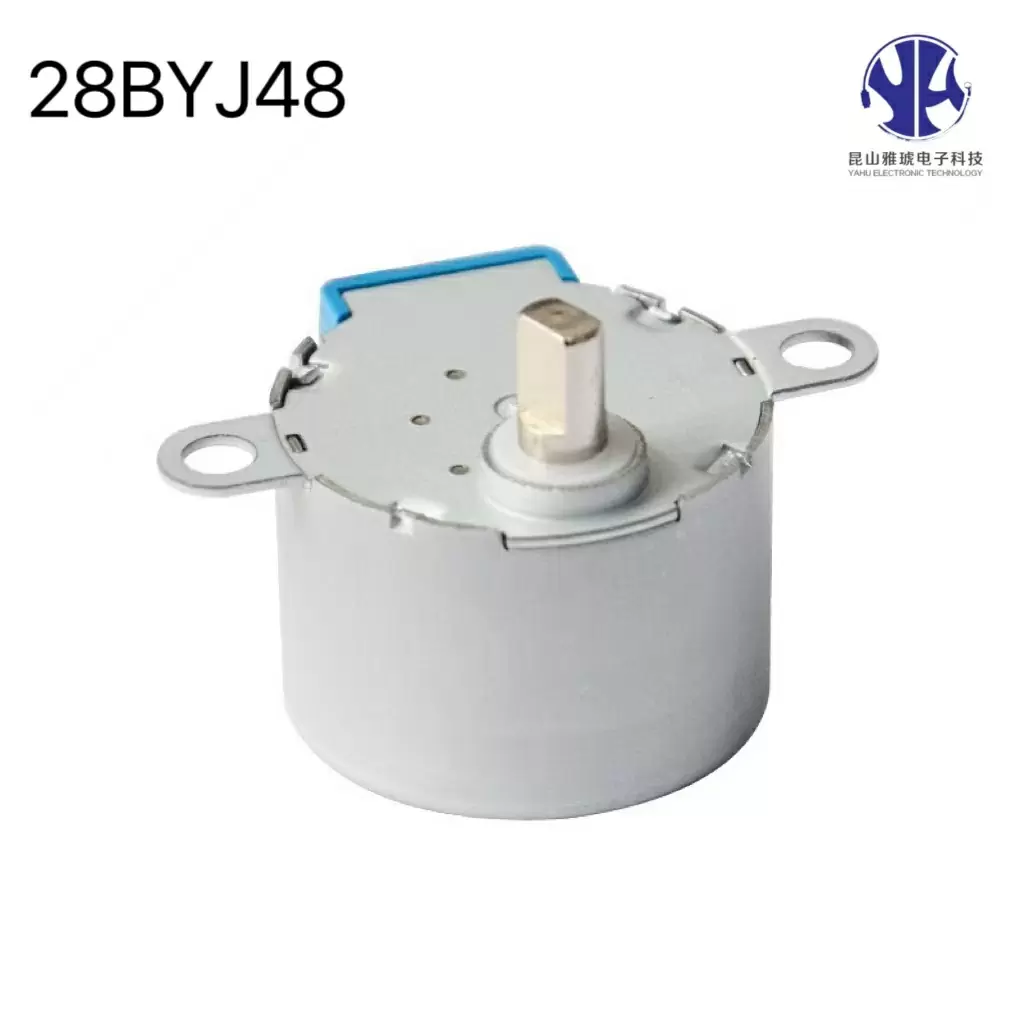

stepper motor 28byj48

MOQ：Depending on material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

Terms of cooperation

P/N

Brand

Certification

MOQ

Packing

Lead time

28byj48

ROHS

REACH

10PCS

pallet

7-12 days

Specification

Number of phase	1-2
stepper Angle	5.625°
Reduction ratio	1:64
Rated voltage(phase)	12V(DC)
Resistance (phase)@25℃	130Ω+/-7%
pull in torque(100pps)	≥88.2mN.m
Cogging torque	≥49mN.m
Noise	≤35dB
Noload pul in	≥800Hz
No load pull out frequency	≥1000Hz
Duty	continuous
Dielectric Strength	600V A.C
(DC500V)/Insulation	Above 50MΩ/Min
Insulation	E
Temperature Rise	Below 40K/MAX
Friction Torque	/
Storage Ambient Temperature	-5℃+35℃
Storage Ambient Humidity	<75%RH

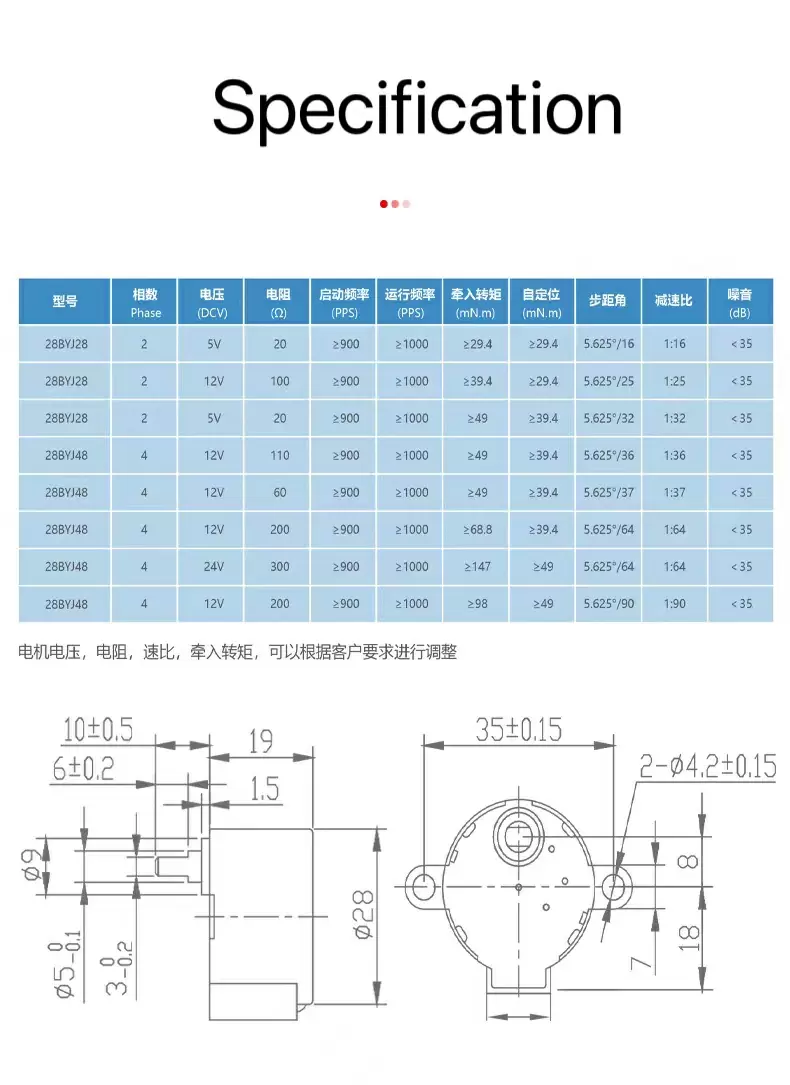

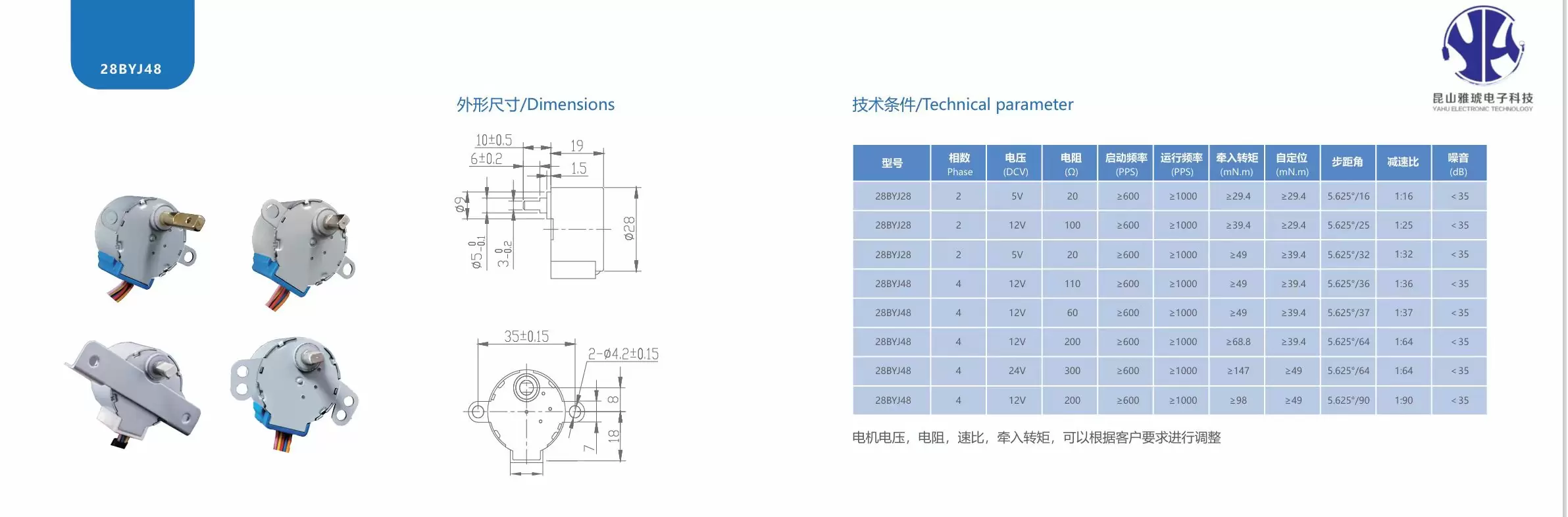

Drawing of 28BYJ48 MOTOR

Wiring Diagram

Packing

Aplication

Packing warehouse

Make process

Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
