BYJ stepper motor
28BYJ48 mini stepper motor

MOQ：Depending on  material and product complexity, usually 100PCS

SAMPLE：Available

OEM：We support OEM/ODM

Inquiry

PRODUCT FEATURE

Details of cooperation

P/NApplicationcapacityMade inBrandCertMOQpacking Lead time
28BYJ48

  • Up and Down Sweeping

  • Air Conditioner Cabinet

80000-100000pcs/dayChinaYH

CE

ROHS

REACH

10PCSpallet7-12  days

          28BYJ48 Stepper Motors.We offer customized, high-quality brushless DC motors for various applications. Based in Kunshan, China, we are a manufacturer with our own industrial park and high-precision auto assembly facilities. Our motors are perfect for Up and Down Sweeping, Air Conditioner Cabinet, Swing Vane, and Wind Direction Motors. With professional testing machines and a QC team, we ensure full inspection for each mass production. Fast lead time and various payment terms available. Contact us for customized service and more details!

Specification

Number of phase1-2
Basic step Angel5.625°
Reduction ratio 1：64
Rated voltage(phase)12V(DC)
Resistance (phase)@25℃130Ω+/-7%
pull in torque≥88.2mN.m
cogging torque≥49mN.m
Noise≤35dB
NO load pull in frequency≥800Hz
NO load pull out  frequency≥1000Hz
Dutycontinuous
Dielectric strength600V A.C
InsulationAbove 50MΩ/Min
(UL) Insulation classE
Temperature RiseBelow 40K/Max
Friction Torque/
Storage Ambient Temperature-5℃+35℃
Storage Ambient Humidity＜75%RH

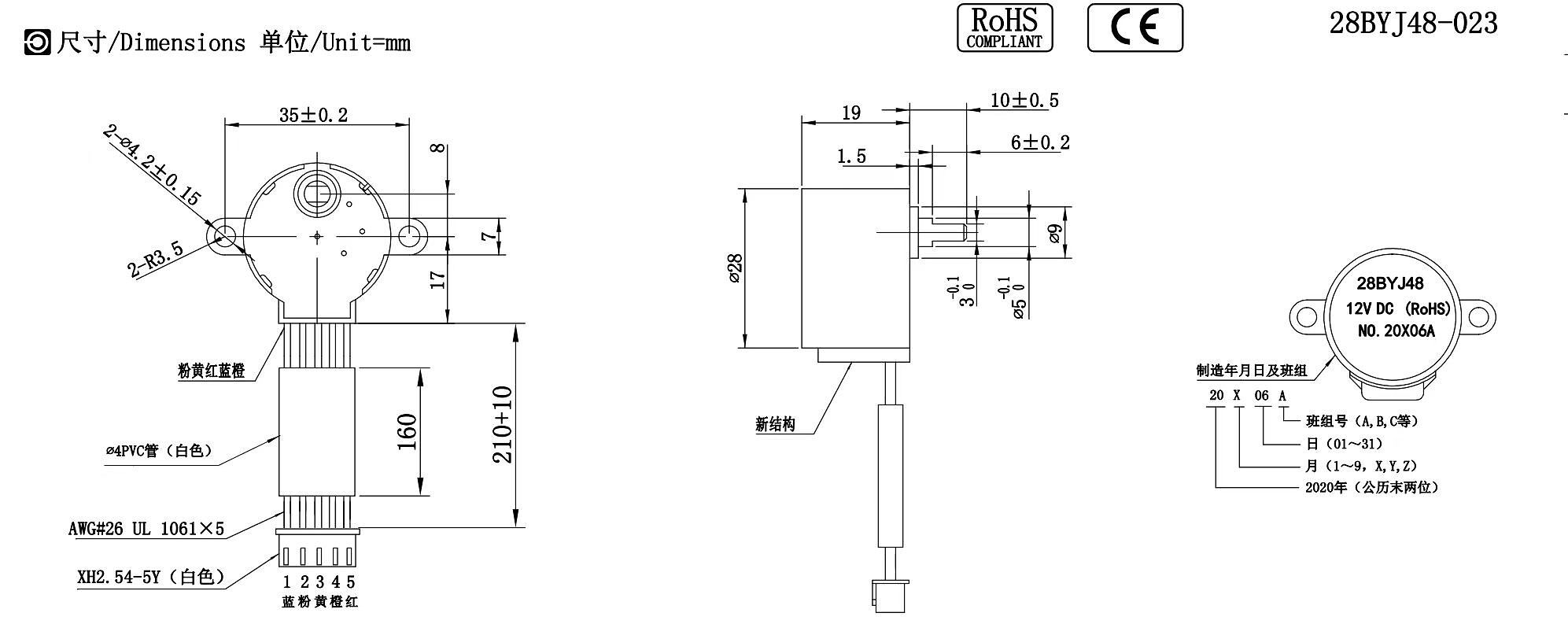

 Drawing of 28BYJ48 MOTOR

drawing of 28byj48 stepper motor

Wiring Diagram

wiring diagram of 28byj48 stepper motor

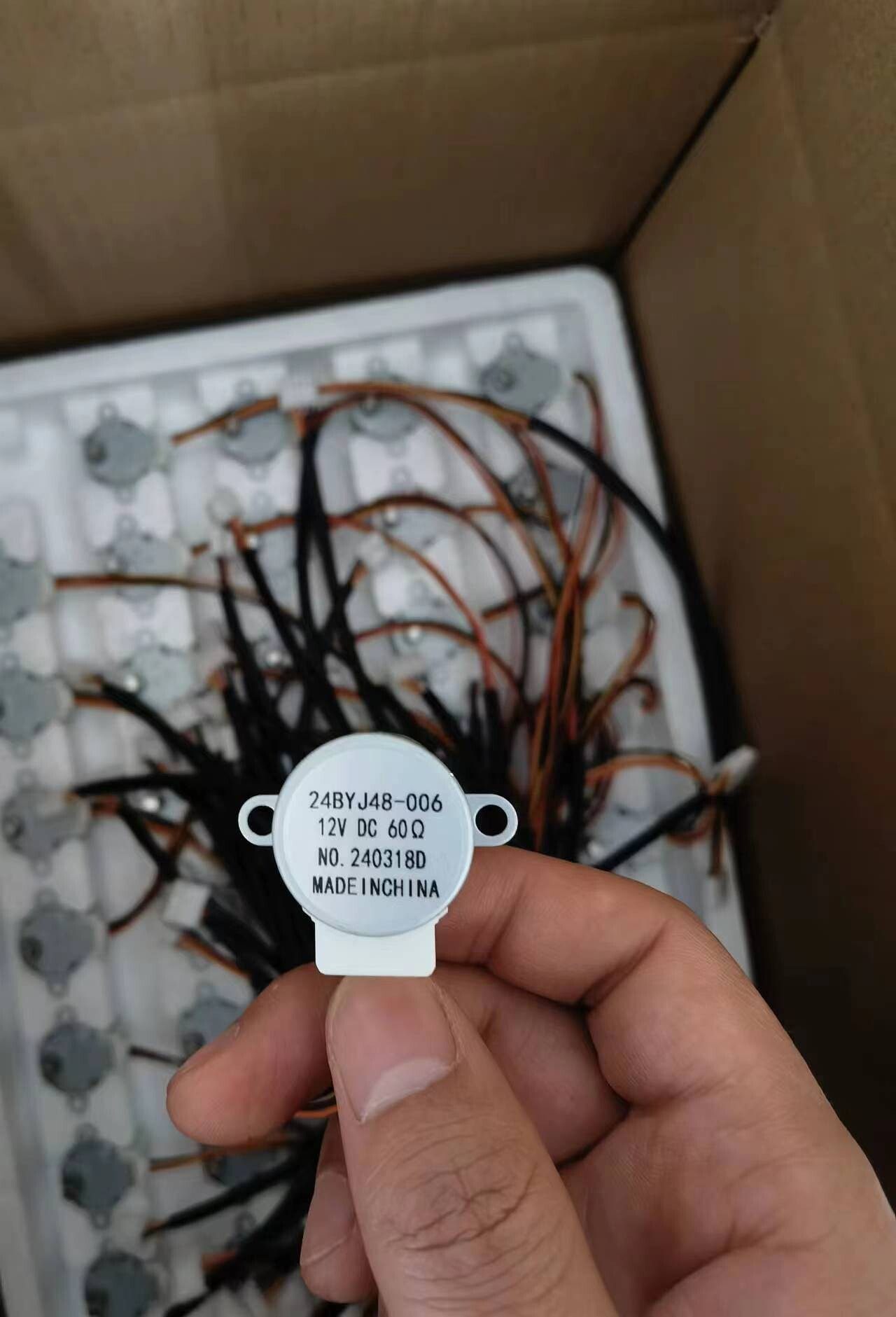

Pallet

package of 28byj48 stepper motor

Aplication

BYJ stepper motor is used to Dehumidifier , Smart toliet ,Bathroom heater , Air-conditioned ,Electric fireplace, Celling conditoner , Monitor ,Water dispenser ,Circulating fan ,Generator, Parking air-conditioner ,Extrarange machine



Packing warehouse

warehouse of stepper motor

Make process

workshop of making stepper motor

Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
